An interface of file-tree. More...

#include <FTInstance.hpp>

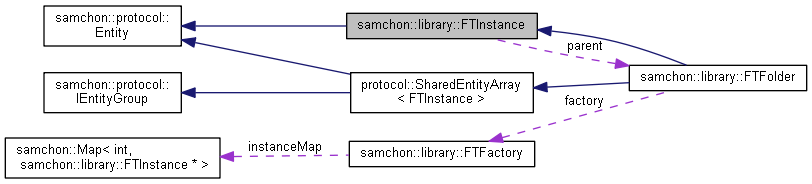

Collaboration diagram for samchon::library::FTInstance:

[legend]

Public Member Functions
	FTInstance (FTFolder *)
	Construct from parent folder. More...

virtual auto	key () const -> std::string
	Get a key that can identify the Entity uniquely. More...

auto	getUID () const -> int
	Get uid. More...

auto	getParent () const -> FTFolder *
	Get parent folder. More...

auto	getName () const -> std::string
	Get name. More...

auto	getComment () const -> std::string
	Get comment. More...

virtual auto	toXML () const -> std::shared_ptr< library::XML >
	Get an XML object represents the Entity. More...

Public Member Functions inherited from samchon::protocol::Entity
	Entity ()
	Default Constructor. More...

virtual void	construct (std::shared_ptr< library::XML >)=0
	Construct data of the Entity from an XML object. More...

Protected Member Functions
virtual auto	TAG () const -> std::string
	A tag name when represented by XML. More...

Protected Attributes
FTFolder *	parent
	Parent folder containing the instance. More...

int	uid
	Key, an unique id of file. More...

std::string	name
	Name of the file. More...

std::string	comment
	Comment of the file. More...

Detailed Description

An interface of file-tree.

An abstract class for folder and file instances.

See also: samchon::library

Author: Jeongho Nam http://samchon.org

Definition at line 22 of file FTInstance.hpp.

Constructor & Destructor Documentation

FTInstance::FTInstance ( FTFolder * parent )

Construct from parent folder.

Parameters

parent Parent folder that this instance is belonged to

Definition at line 13 of file FTInstance.cpp.

References comment, name, parent, and uid.

Member Function Documentation

auto FTInstance::TAG ( ) const -> std::string

protectedvirtual

A tag name when represented by XML.

Returns: A tag name

Implements samchon::protocol::Entity.

Definition at line 11 of file FTInstance.cpp.

auto FTInstance::key ( ) const -> std::string

virtual

Get a key that can identify the Entity uniquely.

If identifier of the Entity is not atomic value, returns a string represents the composite identifier. If identifier of the Entity is not string, converts the identifier to string and returns the string.

Returns: An identifier

Reimplemented from samchon::protocol::Entity.

Definition at line 25 of file FTInstance.cpp.

References uid.

Referenced by samchon::namtree::NTFile::toXML().

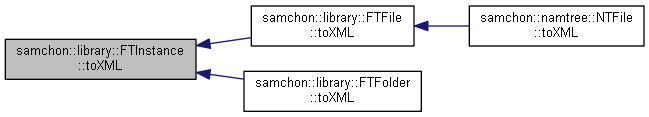

Here is the caller graph for this function:

auto FTInstance::getUID ( ) const -> int

Get uid.

Definition at line 29 of file FTInstance.cpp.

References uid.

Referenced by samchon::library::FTFactory::registerInstance().

Here is the caller graph for this function:

auto FTInstance::getParent ( ) const -> FTFolder*

Get parent folder.

Definition at line 33 of file FTInstance.cpp.

References parent.

auto FTInstance::getName ( ) const -> std::string

Get name.

Definition at line 37 of file FTInstance.cpp.

References name.

auto FTInstance::getComment ( ) const -> std::string

Get comment.

Definition at line 41 of file FTInstance.cpp.

References comment.

auto FTInstance::toXML ( ) const -> std::shared_ptr<library::XML>

virtual

Get an XML object represents the Entity.

Returns an XML object that can represents the Entity containing member variables into properties.

A member variable (not object, but atomic value like number, string or date) is categorized as a property within the framework of entity side. Thus, when overriding a toXML() method and archiving member variables to an XML object to return, puts each variable to be a property belongs to only an XML object.

Don't archive the member variable of atomic value to XML::value causing enormouse creation of XML objects to number of member variables. An Entity must be represented by only an XML instance (tag).

Standard Usage	Non-standard usage abusing value
<memberList> <member id='jhnam88' name='Jeongho+Nam' birthdate='1988-03-11' /> <member id='master' name='Administartor' birthdate='2011-07-28' /> </memberList>	<member> <id>jhnam88</id> <name>Jeongho+Nam</name> <birthdate>1988-03-11</birthdate> </member>
