samchon::library::SQLi Class Reference

A SQL interface; DBMS connector. More...

#include <SQLi.hpp>

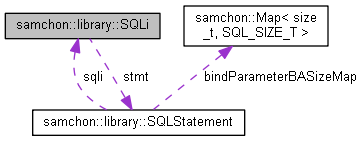

Collaboration diagram for samchon::library::SQLi:

Public Member Functions
	SQLi (const std::string &driver, int port)
	Construct from driver name and port. More...
virtual void	connect (const std::string &ip, const std::string &db, const std::string &id, const std::string &pwd)
	Connect to the DBMS . More...
virtual void	disconnect ()
	Disconnect from DBMS. More...
virtual auto	createStatement () -> std::shared_ptr< SQLStatement >
	Factory method for creating SQLStatement. More...

Protected Attributes
std::string	driver
	Driver; name of DBMS used for connection. More...
int	port
	Port number of DBMS. More...

Private Attributes
void *	hdbc
	Handler of DB-connector. More...
SQLStatement *	stmt
	SQLStatement's pointer linked with the SQLi. More...
std::mutex	stmtMutex
	Mutex ensuring concurrency with SQLStatement. More...

Detailed Description

A SQL interface; DBMS connector.

SQLi is an abstract class managing connection (session) with a specific database and manages SQL statements are executed and results are returned within the context of a connection.

The reason why SQLStatement(s) are managed by SQLi is because of a principle of DBMS, DBMS system doesn't allow simultaneous query from a session (connection). Only a query (process0) is allowed at a time. If you try to simultaneous query from a SQLi, ODBC throws error. To avoid the error, an execute of query from SQLStatement will lock a mutex of SQLi to ensure exclusiveness.

Note

To ensure the exclusiveness, you've to make SQLStatement from SQLi. Do not make SQLStatement by yourself. call SQLi::createSQLStatement() instead. Even you make a derived class from SQLStatement, don't make its constructor to have public accessor.

Becuase execution of a sql statement causes lock on mutex in SQLi, you've to destruct the SQLStatement or call SQLStatement::free() method(). If you don't, the mutex will not be unlocked, thus you can't do anything by the SQLi.

See also

samchon::library

Author

Jeongho Nam http://samchon.org

Definition at line 42 of file SQLi.hpp.

Constructor & Destructor Documentation

SQLi::SQLi	(	const std::string &	driver,
		int	port
	)

Construct from driver name and port.

Parameters

driver	Driver name of DBMS
port	Port number of DBMS

Definition at line 23 of file SQLi.cpp.

Member Function Documentation

void SQLi::connect ( const std::string &  ip, const std::string &  db, const std::string &  id, const std::string &  pwd  )

virtual

Connect to the DBMS
.

Parameters

ip	An IP address of the DBMS
db	A name of database to access
id	Your own ID authorified from DBMS
pwd	A password for the ID

Exceptions

exception

Error message from DBMS

Definition at line 40 of file SQLi.cpp.

void SQLi::disconnect ( )

virtual

Disconnect from DBMS.

Definition at line 71 of file SQLi.cpp.

auto SQLi::createStatement ( ) -> std::shared_ptr<SQLStatement>

virtual

Factory method for creating SQLStatement.

Recommend to create SQLStatement by this method. Direct creation is not recommended as the reason of domain problem of each DBMS

Returns

A SQLStatement matched for the domain SQLi

Reimplemented in samchon::library::TSQLi.

Definition at line 35 of file SQLi.cpp.

Member Data Documentation

std::string samchon::library::SQLi::driver

protected

Driver; name of DBMS used for connection.

• MySQL: "{MySQL Server}"
• MS-SQL: "{SQL Server}"
• PL-SQL: "{Oracle}"

Definition at line 55 of file SQLi.hpp.

int samchon::library::SQLi::port

protected

Port number of DBMS.

• MySQL: 3306
• MS-SQL: 1433
• PL-SQL: 1521

Definition at line 65 of file SQLi.hpp.

void* samchon::library::SQLi::hdbc

private

Handler of DB-connector.

Definition at line 76 of file SQLi.hpp.

Referenced by samchon::library::SQLStatement::SQLStatement().

SQLStatement* samchon::library::SQLi::stmt

private

SQLStatement's pointer linked with the SQLi.

Definition at line 81 of file SQLi.hpp.

Referenced by samchon::library::SQLStatement::free(), and samchon::library::SQLStatement::refresh().

std::mutex samchon::library::SQLi::stmtMutex

private

Mutex ensuring concurrency with SQLStatement.

Definition at line 86 of file SQLi.hpp.

Referenced by samchon::library::SQLStatement::free(), and samchon::library::SQLStatement::refresh().

---

The documentation for this class was generated from the following files:

• D:/OneDrive/Project/Samchon/framework/cpp/samchon/library/SQLi.hpp
• D:/OneDrive/Project/Samchon/framework/cpp/samchon/library/SQLi.cpp
