A metadata of a parameter in a function. More...

#include <NTParameter.hpp>

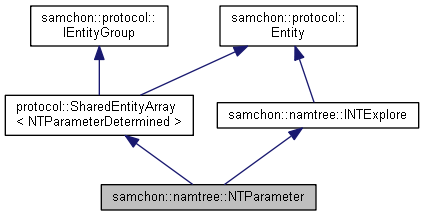

Collaboration diagram for samchon::namtree::NTParameter:

[legend]

Public Member Functions
	NTParameter ()
	Default Constructor. More...

virtual void	construct (std::shared_ptr< library::XML >) override
	Construct data of the Entity from an XML object. More...

virtual auto	key () const -> std::string override
	Get a key that can identify the Entity uniquely. More...

auto	getName () const -> std::string
	Get name. More...

auto	getInitialValue () const -> double
	Get initial, default vlaue. More...

virtual auto	TAG () const -> std::string override
	A tag name when represented by XML. More...

virtual auto	CHILD_TAG () const -> std::string override
	A tag name of children. More...

virtual auto	toXML () const -> std::shared_ptr< library::XML > override
	Get an XML object represents the Entity. More...

Public Member Functions inherited from samchon::protocol::EntityGroup< _Container, _ETy, T >
	EntityGroup ()
	Default Constructor. More...

auto	has (const std::string &key) const -> bool
	Indicates whether a container has an object having the specified identifier. More...

auto	get (const std::string &key) -> value_type &
	Access the element by specified identifier(key). More...

auto	get (const std::string &key) const -> const value_type &
	Access the const element by specified identifier(key). More...

Public Member Functions inherited from samchon::protocol::Entity
	Entity ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::IEntityGroup
	IEntityGroup ()
	Default Constructor. More...

Public Member Functions inherited from samchon::namtree::INTExplore
	INTExplore ()
	Default Constructor. More...

auto	getMinimum () const -> double
	Get minimum. More...

auto	getMaximum () const -> double
	Get maximum. More...

auto	getSection () const -> unsigned int
	Get section. More...

auto	getPrecision () const -> int
	Get precision. More...

Protected Member Functions
virtual auto	createChild (std::shared_ptr< library::XML >) -> NTParameterDetermined *override
	Factory method of a child Entity. More...

Protected Attributes
std::string	name
	Name of a paremeter. More...

double	initialValue
	An initial, default value. More...

Protected Attributes inherited from samchon::namtree::INTExplore
double	minimum
	Minimum value. More...

double	maximum
	Maximum value. More...

unsigned int	section
	Section number of exploration. More...

int	precision
	Target precision: 10^precision More...

Detailed Description

A metadata of a parameter in a function.

NTParameter is a class containing metadata of a parameter which is belonged to a class, metadata of a function, NTFile. Between the NTFile and NTParameter(s), there's a associate relationship.

See also: samchon::namtree

Author: Jeongho Nam http://samchon.org

Definition at line 25 of file NTParameter.hpp.

Constructor & Destructor Documentation

NTParameter::NTParameter ( )

Default Constructor.

Definition at line 16 of file NTParameter.cpp.

References initialValue.

Member Function Documentation

void NTParameter::construct ( std::shared_ptr< library::XML > )

overridevirtual

Construct data of the Entity from an XML object.

Overrides the construct() method and fetch data of member variables from the XML.

By recommended guidance, data representing member variables are contained in properties of the put XML object.

Parameters

xml	An xml used to construct data of entity

Reimplemented from samchon::namtree::INTExplore.

Definition at line 21 of file NTParameter.cpp.

References samchon::namtree::INTExplore::construct(), samchon::protocol::EntityGroup< _Container, _ETy, T >::construct(), initialValue, and name.

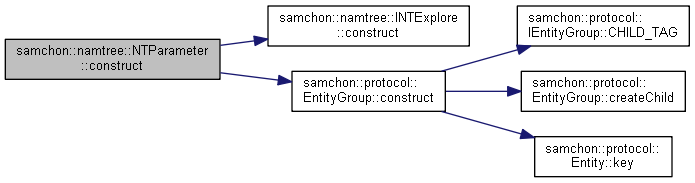

Here is the call graph for this function:

auto NTParameter::createChild ( std::shared_ptr< library::XML > ) -> NTParameterDetermined *override

overrideprotectedvirtual

Factory method of a child Entity.

EntityGroup::createChild() is a factory method creating a new child Entity which is belonged to the EntityGroup. This method is called by EntityGroup::construct(). The children construction methods Entity::construct() will be called by abstract method of the EntityGroup::construct().

Returns: A new child Entity belongs to EntityGroup.

Implements samchon::protocol::EntityGroup< _Container, _ETy, T >.

Definition at line 32 of file NTParameter.cpp.

auto NTParameter::key ( ) const -> std::string

overridevirtual

Get a key that can identify the Entity uniquely.

If identifier of the Entity is not atomic value, returns a string represents the composite identifier. If identifier of the Entity is not string, converts the identifier to string and returns the string.

Returns: An identifier

Reimplemented from samchon::protocol::Entity.

Definition at line 37 of file NTParameter.cpp.

References name.

auto NTParameter::getName ( ) const -> std::string

Get name.

Definition at line 41 of file NTParameter.cpp.

References name.

auto NTParameter::getInitialValue ( ) const -> double

Get initial, default vlaue.

Definition at line 45 of file NTParameter.cpp.

References initialValue.

auto NTParameter::TAG ( ) const -> std::string

overridevirtual

A tag name when represented by XML.

Returns: A tag name

Implements samchon::protocol::Entity.

Definition at line 13 of file NTParameter.cpp.

auto NTParameter::CHILD_TAG ( ) const -> std::string

overridevirtual

A tag name of children.

< TAG>
<CHILD_TAG />
<CHILD_TAG />
</TAG>

Implements samchon::protocol::IEntityGroup.

Definition at line 14 of file NTParameter.cpp.

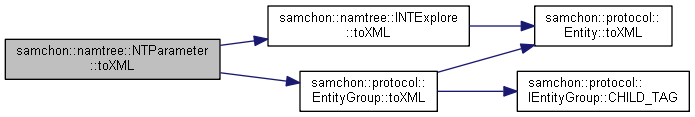

auto NTParameter::toXML ( ) const -> std::shared_ptr<library::XML>

overridevirtual

Get an XML object represents the Entity.

Returns an XML object that can represents the Entity containing member variables into properties.

A member variable (not object, but atomic value like number, string or date) is categorized as a property within the framework of entity side. Thus, when overriding a toXML() method and archiving member variables to an XML object to return, puts each variable to be a property belongs to only an XML object.

Don't archive the member variable of atomic value to XML::value causing enormouse creation of XML objects to number of member variables. An Entity must be represented by only an XML instance (tag).

Standard Usage	Non-standard usage abusing value
<memberList> <member id='jhnam88' name='Jeongho+Nam' birthdate='1988-03-11' /> <member id='master' name='Administartor' birthdate='2011-07-28' /> </memberList>	<member> <id>jhnam88</id> <name>Jeongho+Nam</name> <birthdate>1988-03-11</birthdate> </member>
