Represent a travel containning Point(s) More...

#include <Travel.hpp>

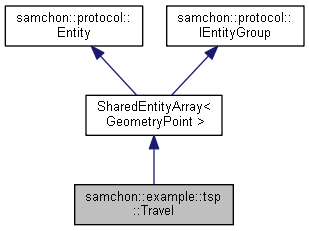

Collaboration diagram for samchon::example::tsp::Travel:

Public Member Functions
	Travel ()
	Default Constructor. More...

	Travel (const Travel &travel)
	Copy Constructor. More...

	Travel (Travel &&travel)
	Move Constructor. More...

auto	calcDistance () const -> double
	Calculate distance to move. More...

auto	operator< (const Travel &travel) const -> bool
	Compare which object is less. More...

virtual auto	TAG () const -> string override
	A tag name when represented by XML. More...

virtual auto	CHILD_TAG () const -> string override
	A tag name of children. More...

virtual auto	toXML () const -> shared_ptr< XML > override
	Get an XML object represents the EntityGroup. More...

auto	toString () const -> string
	Convert the Travel to String. More...

Public Member Functions inherited from samchon::protocol::EntityGroup< _Container, _ETy, T >
	EntityGroup ()
	Default Constructor. More...

virtual void	construct (std::shared_ptr< library::XML > xml)
	Construct data of the Entity from an XML object. More...

auto	has (const std::string &key) const -> bool
	Indicates whether a container has an object having the specified identifier. More...

auto	get (const std::string &key) -> value_type &
	Access the element by specified identifier(key). More...

auto	get (const std::string &key) const -> const value_type &
	Access the const element by specified identifier(key). More...

Public Member Functions inherited from samchon::protocol::Entity
	Entity ()
	Default Constructor. More...

virtual auto	key () const -> std::string
	Get a key that can identify the Entity uniquely. More...

Public Member Functions inherited from samchon::protocol::IEntityGroup
	IEntityGroup ()
	Default Constructor. More...

Protected Attributes
double	distance
	Estimated hours to move. More...

Additional Inherited Members
Protected Member Functions inherited from samchon::protocol::EntityGroup< _Container, _ETy, T >
virtual auto	createChild (std::shared_ptr< library::XML >) -> entity_type *=0
	Factory method of a child Entity. More...

Detailed Description

Represent a travel containning Point(s)

Travel class is not only an array containing Point(s) but also a sequence listing of the Point(s).

Author: Jeongho Nam http://samchon.org

Definition at line 27 of file Travel.hpp.

Constructor & Destructor Documentation

samchon::example::tsp::Travel::Travel ( )

inline

Default Constructor.

Definition at line 49 of file Travel.hpp.

samchon::example::tsp::Travel::Travel ( const Travel & travel )

inline

Copy Constructor.

Travel is an array of Point(s) as gene(s). The copy constructor of Travel doesn't copy member variables which are related to G.A. because the sequence of gene(Point)s can be shuffled by process of evolution of genetic algorithm.

Definition at line 63 of file Travel.hpp.

samchon::example::tsp::Travel::Travel ( Travel && travel )

inline

Move Constructor.

Definition at line 72 of file Travel.hpp.

Member Function Documentation

auto samchon::example::tsp::Travel::calcDistance ( ) const -> double

inline

Calculate distance to move.

Definition at line 103 of file Travel.hpp.

auto samchon::example::tsp::Travel::operator< ( const Travel & travel ) const -> bool

inline

Compare which object is less.

Compares distances to move. The result is used to optimize and evolve genes by G.A.

Parameters

Target object to compare

Returns: Whether this object is less than target

Definition at line 124 of file Travel.hpp.

virtual auto samchon::example::tsp::Travel::TAG ( ) const -> string

inlineoverridevirtual

A tag name when represented by XML.

Returns: A tag name

Implements samchon::protocol::Entity.

Definition at line 132 of file Travel.hpp.

virtual auto samchon::example::tsp::Travel::CHILD_TAG ( ) const -> string

inlineoverridevirtual

A tag name of children.

< TAG>
<CHILD_TAG />
<CHILD_TAG />
</TAG>

Implements samchon::protocol::IEntityGroup.

Definition at line 136 of file Travel.hpp.

virtual auto samchon::example::tsp::Travel::toXML ( ) const -> shared_ptr<XML>

inlineoverridevirtual

Get an XML object represents the EntityGroup.

Archives the EntityGroup's own member variables only to the returned XML object.

Do not consider about archiving children Entity objects' data in EntityGroup::toXML(). Those children Entity objects will converted to XML object by their own toXML() method. The insertion of XML objects representing children are done by abstract method of EntityGroup::toXML().

Archives only data of EntityGroup's own.

[Inherited]: Get an XML object represents the Entity.

Returns an XML object that can represents the Entity containing member variables into properties.

A member variable (not object, but atomic value like number, string or date) is categorized as a property within the framework of entity side. Thus, when overriding a toXML() method and archiving member variables to an XML object to return, puts each variable to be a property belongs to only an XML object.

Don't archive the member variable of atomic value to XML::value causing enormouse creation of XML objects to number of member variables. An Entity must be represented by only an XML instance (tag).

Standard Usage	Non-standard usage abusing value
<memberList> <member id='jhnam88' name='Jeongho+Nam' birthdate='1988-03-11' /> <member id='master' name='Administartor' birthdate='2011-07-28' /> </memberList>	<member> <id>jhnam88</id> <name>Jeongho+Nam</name> <birthdate>1988-03-11</birthdate> </member>

Returns: An XML object representing the Entity.

Reimplemented from samchon::protocol::EntityGroup< _Container, _ETy, T >.

Definition at line 141 of file Travel.hpp.

auto samchon::example::tsp::Travel::toString ( ) const -> string

inline

Convert the Travel to String.

Have of form of tab and enter delimeters for Excel.

 {$uid1}    {$x}    {$y}

 {$uid2}   {$x}    {$y}

 {$uid3}   {$x}    {$y}

...

Returns: A string can represent the Travel

Definition at line 162 of file Travel.hpp.

References samchon::library::StringUtil::numberFormat().

Here is the call graph for this function:

Member Data Documentation

double samchon::example::tsp::Travel::distance

protected

Estimated hours to move.

A variable for avoiding duplicated calculation

See also: calcDistance()

Definition at line 40 of file Travel.hpp.

The documentation for this class was generated from the following file:

D:/OneDrive/Project/Samchon/framework/cpp/samchon/example/tsp/Travel.hpp
