samchon::library::RWMutex Class Reference

rw_mutex More...

#include <RWMutex.hpp>

Public Member Functions
	RWMutex ()
	Default Constructor. More...
void	readLock () const
	Lock on read. More...
void	readUnlock () const
	Unlock of read. More...
void	writeLock ()
	Lock on writing. More...
void	writeUnlock ()
	Unlock on writing. More...

Detailed Description

rw_mutex

A mutex divided into reading and writing.

Note

Of course, rw_mutex is already defined in linux C. But it is dependent on the linux OS, so that cannot be compiled in Window having the rw_mutex. There's not a class like rw_mutex in STL yet. It's the reason why RWMutex is provided.

As that reason, if STL supports the rw_mutex in near future, the RWMutex can be deprecated.

See also

samchon::library

Author

Jeongho Nam http://samchon.org

Definition at line 33 of file RWMutex.hpp.

Constructor & Destructor Documentation

RWMutex::RWMutex

(

)

Default Constructor.

Definition at line 10 of file RWMutex.cpp.

Member Function Documentation

void RWMutex::readLock

(

)

const

Lock on read.

Increases a reading count.

When write_lock is on a progress, wait until write_unlock to be called.

• Reading can be done by multiple sections.
• Reading can't be done when writing.

Warning

You've to call read_unlock when the reading work is terminated.

Definition at line 31 of file RWMutex.cpp.

Referenced by samchon::library::UniqueReadLock::lock(), samchon::library::SharedReadLock::SharedReadLock(), and samchon::library::UniqueReadLock::UniqueReadLock().

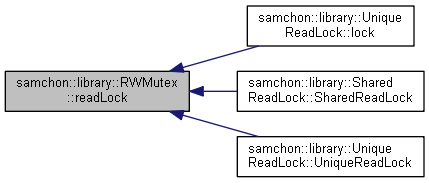

Here is the caller graph for this function:

void RWMutex::readUnlock

(

)

const

Unlock of read.

Decreases a reading count.

When write_lock had done after read_lock, it continues by read_unlock if the reading count was 1 (read_unlock makes the count to be zero).

Definition at line 39 of file RWMutex.cpp.

Referenced by samchon::library::UniqueReadLock::unlock(), and samchon::library::UniqueReadLock::~UniqueReadLock().

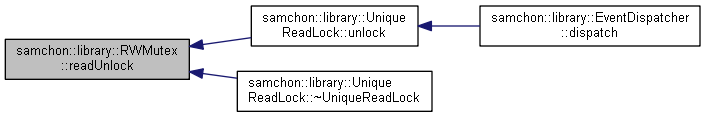

Here is the caller graph for this function:

void RWMutex::writeLock

(

)

Lock on writing.

Changes writing flag to true.

If another write_lock or read_lock is on a progress, wait until them to be unlocked.

• Writing can be done by only a section at once.
• Writing can't be done when reading.

Note

You've to call write_unlock when writing work was terminated.

Definition at line 53 of file RWMutex.cpp.

Referenced by samchon::library::UniqueWriteLock::lock(), samchon::library::SharedWriteLock::SharedWriteLock(), and samchon::library::UniqueWriteLock::UniqueWriteLock().

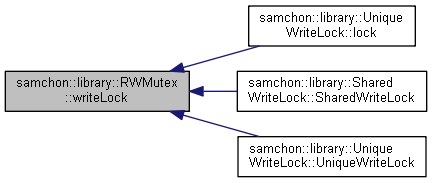

Here is the caller graph for this function:

void RWMutex::writeUnlock

(

)

Unlock on writing.

Definition at line 61 of file RWMutex.cpp.

Referenced by samchon::library::UniqueWriteLock::unlock(), and samchon::library::UniqueWriteLock::~UniqueWriteLock().

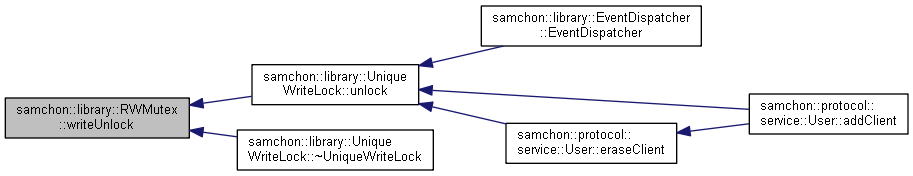

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• D:/OneDrive/Project/Samchon/framework/cpp/samchon/library/RWMutex.hpp
• D:/OneDrive/Project/Samchon/framework/cpp/samchon/library/RWMutex.cpp
