samchon::namtree::NTParameterArray Class Reference

An Array of NTParameter. More...

#include <NTParameterArray.hpp>

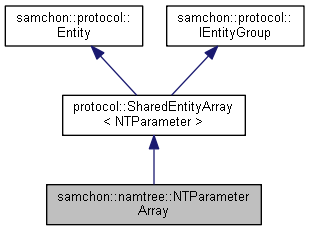

Collaboration diagram for samchon::namtree::NTParameterArray:

Public Member Functions
virtual auto	TAG () const -> std::string override
	A tag name when represented by XML. More...
virtual auto	CHILD_TAG () const -> std::string override
	A tag name of children. More...
	NTParameterArray ()
	Default Constructor. More...
Public Member Functions inherited from samchon::protocol::EntityGroup< _Container, _ETy, T >
	EntityGroup ()
	Default Constructor. More...
virtual void	construct (std::shared_ptr< library::XML > xml)
	Construct data of the Entity from an XML object. More...
auto	has (const std::string &key) const -> bool
	Indicates whether a container has an object having the specified identifier. More...
auto	get (const std::string &key) -> value_type &
	Access the element by specified identifier(key). More...
auto	get (const std::string &key) const -> const value_type &
	Access the const element by specified identifier(key). More...
virtual auto	toXML () const -> std::shared_ptr< library::XML >
	Get an XML object represents the EntityGroup. More...
Public Member Functions inherited from samchon::protocol::Entity
	Entity ()
	Default Constructor. More...
virtual auto	key () const -> std::string
	Get a key that can identify the Entity uniquely. More...
Public Member Functions inherited from samchon::protocol::IEntityGroup
	IEntityGroup ()
	Default Constructor. More...

Protected Member Functions
virtual auto	createChild (std::shared_ptr< library::XML >) -> NTParameter *override
	Factory method of a child Entity. More...

Detailed Description

An Array of NTParameter.

NTParameterArray is an array class containing NTParameter objects.

The NTParameter is belonged to a NTFile class to realize associate relationship between NTFile and NTParameter(s).

See also

samchon::namtree

Author

Jeongho Nam http://samchon.org

Definition at line 25 of file NTParameterArray.hpp.

Constructor & Destructor Documentation

NTParameterArray::NTParameterArray

(

)

Default Constructor.

Definition at line 14 of file NTParameterArray.cpp.

Member Function Documentation

auto NTParameterArray::TAG ( ) const -> std::string

overridevirtual

A tag name when represented by XML.

Returns

A tag name

Implements samchon::protocol::Entity.

Definition at line 11 of file NTParameterArray.cpp.

Referenced by samchon::namtree::NTFile::construct().

Here is the caller graph for this function:

auto NTParameterArray::CHILD_TAG ( ) const -> std::string

overridevirtual

A tag name of children.

< TAG>
     <CHILD_TAG />
     <CHILD_TAG />
</TAG>

Implements samchon::protocol::IEntityGroup.

Definition at line 12 of file NTParameterArray.cpp.

auto NTParameterArray::createChild ( std::shared_ptr< library::XML >  ) -> NTParameter *override

overrideprotectedvirtual

Factory method of a child Entity.

EntityGroup::createChild() is a factory method creating a new child Entity which is belonged to the EntityGroup. This method is called by EntityGroup::construct(). The children construction methods Entity::construct() will be called by abstract method of the EntityGroup::construct().

Returns

A new child Entity belongs to EntityGroup.

Implements samchon::protocol::EntityGroup< _Container, _ETy, T >.

Definition at line 18 of file NTParameterArray.cpp.

---

The documentation for this class was generated from the following files:

• D:/OneDrive/Project/Samchon/framework/cpp/samchon/namtree/NTParameterArray.hpp
• D:/OneDrive/Project/Samchon/framework/cpp/samchon/namtree/NTParameterArray.cpp
