A scheduler. More...

#include <Scheduler.hpp>

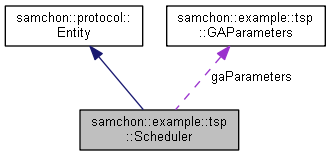

Collaboration diagram for samchon::example::tsp::Scheduler:

Public Member Functions
	Scheduler ()
	Default Constructor. More...

	Scheduler (shared_ptr< Travel > travel, const struct GAParameters &gaParameteres)
	Construct from points and parameter of genetic algorithm. More...

auto	optimize () -> shared_ptr< Travel >
	Derive optimized schedule. More...

virtual auto	TAG () const -> string override
	A tag name when represented by XML. More...

virtual auto	toXML () const -> shared_ptr< XML > override
	Get an XML object represents the Entity. More...

Public Member Functions inherited from samchon::protocol::Entity
	Entity ()
	Default Constructor. More...

virtual void	construct (std::shared_ptr< library::XML >)=0
	Construct data of the Entity from an XML object. More...

virtual auto	key () const -> std::string
	Get a key that can identify the Entity uniquely. More...

Protected Attributes
shared_ptr< Travel >	travel
	A travel to optimize or optimized. More...

struct GAParameters	gaParameters
	Parameters for Genetic-Algorithm. More...

Detailed Description

A scheduler.

Scheduler deducts an optimal schdule(Travel) by genetic algorithm.

Author: Jeongho Nam http://samchon.org

Definition at line 46 of file Scheduler.hpp.

Constructor & Destructor Documentation

samchon::example::tsp::Scheduler::Scheduler ( )

inline

Default Constructor.

Definition at line 70 of file Scheduler.hpp.

samchon::example::tsp::Scheduler::Scheduler	(	shared_ptr< Travel >	travel,
		const struct GAParameters &	gaParameteres
	)

inline

Construct from points and parameter of genetic algorithm.

Definition at line 80 of file Scheduler.hpp.

Member Function Documentation

auto samchon::example::tsp::Scheduler::optimize ( ) -> shared_ptr<Travel>

inline

Derive optimized schedule.

Returns: An optimized travel schedule.

Definition at line 108 of file Scheduler.hpp.

References samchon::library::GeneticAlgorithm< GeneArray, Compare, Gene >::evolveGeneArray().

Referenced by samchon::example::interaction::TSPSlave::optimize(), and toXML().

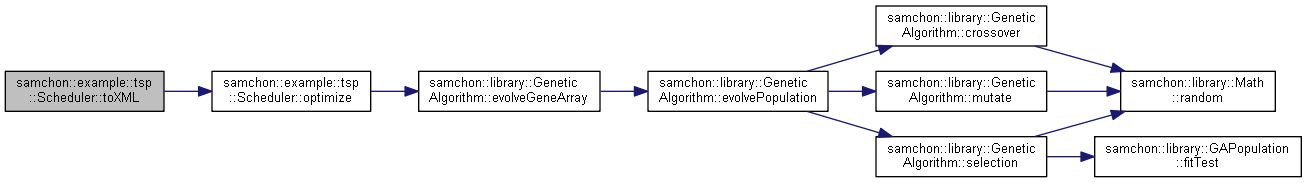

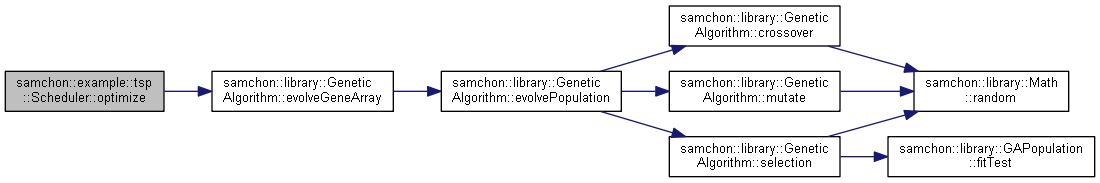

Here is the call graph for this function:

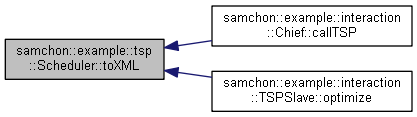

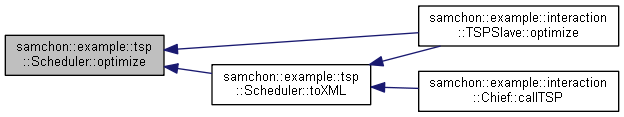

Here is the caller graph for this function:

virtual auto samchon::example::tsp::Scheduler::TAG ( ) const -> string

inlineoverridevirtual

A tag name when represented by XML.

Returns: A tag name

Implements samchon::protocol::Entity.

Definition at line 136 of file Scheduler.hpp.

virtual auto samchon::example::tsp::Scheduler::toXML ( ) const -> shared_ptr<XML>

inlineoverridevirtual

Get an XML object represents the Entity.

Returns an XML object that can represents the Entity containing member variables into properties.

A member variable (not object, but atomic value like number, string or date) is categorized as a property within the framework of entity side. Thus, when overriding a toXML() method and archiving member variables to an XML object to return, puts each variable to be a property belongs to only an XML object.

Don't archive the member variable of atomic value to XML::value causing enormouse creation of XML objects to number of member variables. An Entity must be represented by only an XML instance (tag).

Standard Usage	Non-standard usage abusing value
<memberList> <member id='jhnam88' name='Jeongho+Nam' birthdate='1988-03-11' /> <member id='master' name='Administartor' birthdate='2011-07-28' /> </memberList>	<member> <id>jhnam88</id> <name>Jeongho+Nam</name> <birthdate>1988-03-11</birthdate> </member>
