A role belongs to an external system. More...

#include <ExternalSystemRole.hpp>

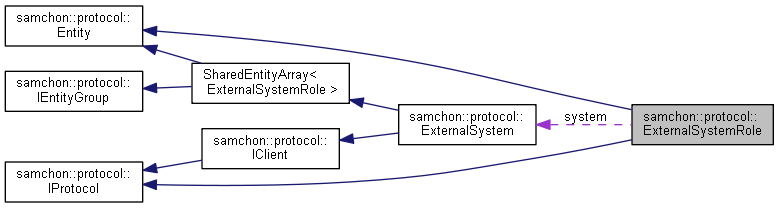

Collaboration diagram for samchon::protocol::ExternalSystemRole:

[legend]

Public Member Functions
	ExternalSystemRole (ExternalSystem *)
	Construct from external system driver. More...

virtual void	construct (std::shared_ptr< library::XML >) override
	Construct data of the Entity from an XML object. More...

auto	getSystem () const -> ExternalSystem *
	Get an external system driver. More...

virtual auto	key () const -> std::string override
	Get a key that can identify the Entity uniquely. More...

auto	hasSendListener (const std::string &) const -> bool
	Test whether has a listener for send in the role. More...

auto	hasReplyListener (const std::string &) const -> bool
	Test whether has a listener for reply in the role. More...

virtual void	sendData (std::shared_ptr< Invoke >) override
	Send a message. More...

virtual auto	TAG () const -> std::string override
	A tag name when represented by XML. More...

virtual auto	toXML () const -> std::shared_ptr< library::XML > override
	Get an XML object represents the Entity. More...

Public Member Functions inherited from samchon::protocol::Entity
	Entity ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::IProtocol
	IProtocol ()
	Default Constructor. More...

virtual void	replyData (std::shared_ptr< Invoke >)
	Reply a message. More...

Protected Attributes
std::string	name
	A name representing the role. More...

std::set< std::string >	replyListeners
	Listeners to reply in the role. More...

std::set< std::string >	sendListeners
	Listeners to send in the role. More...

Private Attributes
ExternalSystem *	system
	A driver of external system containing the ExternalSystemRole. More...

Detailed Description

A role belongs to an external system.

ExternalSystemRole is a 'control' class groupping methods, handling Invoke messages interacting with an external system that the ExternalSystemRole is belonged to, by a subject or unit of a module.

ExternalSystemRole can be a "logical proxy" for an ExternalSystem which is containing the ExternalSystemRole. Of course, the ExternalSystemRole is belonged to an ExternalSystem. However, if you access an ExternalSystemRole from an ExternalSystemArray directly, not passing by a belonged ExternalSystem, and send an Invoke message even you're not knowing which ExternalSystem is related in, the ExternalSystemRole acted a role of proxy.

It's called as "Proxy pattern". With the pattern, you can only concentrate on ExternalSystemRole itself, what to do with Invoke message, irrespective of the ExternalSystemRole is belonged to which ExternalSystem.

See also: samchon::protocol

Author: Jeongho Nam http://samchon.org

Definition at line 39 of file ExternalSystemRole.hpp.

Constructor & Destructor Documentation

ExternalSystemRole::ExternalSystemRole ( ExternalSystem * system )

Construct from external system driver.

Parameters

system A driver of external system the ExternalSystemRole is belonged to.

Definition at line 11 of file ExternalSystemRole.cpp.

References system.

Member Function Documentation

void ExternalSystemRole::construct ( std::shared_ptr< library::XML > )

overridevirtual

Construct data of the Entity from an XML object.

Overrides the construct() method and fetch data of member variables from the XML.

By recommended guidance, data representing member variables are contained in properties of the put XML object.

Parameters

xml	An xml used to construct data of entity

Implements samchon::protocol::Entity.

Reimplemented in samchon::protocol::master::DistributedSystemRole.

Definition at line 17 of file ExternalSystemRole.cpp.

References name, replyListeners, and sendListeners.

Referenced by samchon::protocol::master::DistributedSystemRole::construct().

Here is the caller graph for this function:

auto ExternalSystemRole::getSystem ( ) const -> ExternalSystem*

Get an external system driver.

Definition at line 38 of file ExternalSystemRole.cpp.

References system.

auto ExternalSystemRole::key ( ) const -> std::string

overridevirtual

Get a key that can identify the Entity uniquely.

If identifier of the Entity is not atomic value, returns a string represents the composite identifier. If identifier of the Entity is not string, converts the identifier to string and returns the string.

Returns: An identifier

Reimplemented from samchon::protocol::Entity.

Definition at line 42 of file ExternalSystemRole.cpp.

References name.

Referenced by hasReplyListener(), and hasSendListener().

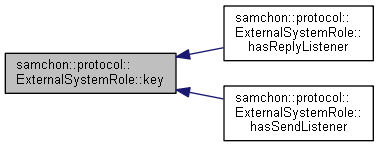

Here is the caller graph for this function:

auto ExternalSystemRole::hasSendListener ( const std::string & ) const -> bool

Test whether has a listener for send in the role.

Definition at line 47 of file ExternalSystemRole.cpp.

References key(), and sendListeners.

Here is the call graph for this function:

auto ExternalSystemRole::hasReplyListener ( const std::string & ) const -> bool

Test whether has a listener for reply in the role.

Definition at line 51 of file ExternalSystemRole.cpp.

References key(), and replyListeners.

Here is the call graph for this function:

void ExternalSystemRole::sendData ( std::shared_ptr< Invoke > )

overridevirtual

Send a message.

Sends Invoke message to a network system or shifts the responsibility to related chain.

Parameters

invoke An Invoke message to send to a network system

Reimplemented from samchon::protocol::IProtocol.

Reimplemented in samchon::protocol::master::DistributedSystemRole.

Definition at line 59 of file ExternalSystemRole.cpp.

References samchon::protocol::IClient::sendData(), and system.

Referenced by samchon::protocol::ExternalSystemArray::sendData().

Here is the call graph for this function:

Here is the caller graph for this function:

auto ExternalSystemRole::TAG ( ) const -> std::string

overridevirtual

A tag name when represented by XML.

Returns: A tag name

Implements samchon::protocol::Entity.

Definition at line 67 of file ExternalSystemRole.cpp.

auto ExternalSystemRole::toXML ( ) const -> std::shared_ptr<library::XML>

overridevirtual

Get an XML object represents the Entity.

Returns an XML object that can represents the Entity containing member variables into properties.

A member variable (not object, but atomic value like number, string or date) is categorized as a property within the framework of entity side. Thus, when overriding a toXML() method and archiving member variables to an XML object to return, puts each variable to be a property belongs to only an XML object.

Don't archive the member variable of atomic value to XML::value causing enormouse creation of XML objects to number of member variables. An Entity must be represented by only an XML instance (tag).

Standard Usage	Non-standard usage abusing value
<memberList> <member id='jhnam88' name='Jeongho+Nam' birthdate='1988-03-11' /> <member id='master' name='Administartor' birthdate='2011-07-28' /> </memberList>	<member> <id>jhnam88</id> <name>Jeongho+Nam</name> <birthdate>1988-03-11</birthdate> </member>

Returns: An XML object representing the Entity.

Reimplemented from samchon::protocol::Entity.

Reimplemented in samchon::protocol::master::DistributedSystemRole.

Definition at line 72 of file ExternalSystemRole.cpp.

References name, replyListeners, sendListeners, and samchon::protocol::Entity::toXML().

Referenced by samchon::protocol::master::DistributedSystemRole::toXML().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

ExternalSystem* samchon::protocol::ExternalSystemRole::system

private

A driver of external system containing the ExternalSystemRole.

Definition at line 50 of file ExternalSystemRole.hpp.

Referenced by ExternalSystemRole(), getSystem(), and sendData().

std::string samchon::protocol::ExternalSystemRole::name

protected

A name representing the role.

Definition at line 56 of file ExternalSystemRole.hpp.

Referenced by construct(), key(), and toXML().

std::set<std::string> samchon::protocol::ExternalSystemRole::replyListeners

protected

Listeners to reply in the role.

Definition at line 61 of file ExternalSystemRole.hpp.

Referenced by construct(), hasReplyListener(), and toXML().

std::set<std::string> samchon::protocol::ExternalSystemRole::sendListeners

protected

Listeners to send in the role.

Definition at line 66 of file ExternalSystemRole.hpp.

Referenced by construct(), hasSendListener(), and toXML().

The documentation for this class was generated from the following files:

D:/OneDrive/Project/Samchon/framework/cpp/samchon/protocol/ExternalSystemRole.hpp
D:/OneDrive/Project/Samchon/framework/cpp/samchon/protocol/ExternalSystemRole.cpp
