samchon::protocol::IProtocol Class Reference

An interface of Invoke message chain. More...

#include <IProtocol.hpp>

Public Member Functions
	IProtocol ()
	Default Constructor. More...
virtual void	replyData (std::shared_ptr< Invoke >)
	Reply a message. More...
virtual void	sendData (std::shared_ptr< Invoke >)
	Send a message. More...

Detailed Description

An interface of Invoke message chain.

IProtocol is an interface for Invoke message, which is standard message of network I/O in Samchon Framework, chain. The IProtocol interface is used to network drivers and some classes which are in a relationship of chain of responsibility with those network drivers.

IProtocol is one of the basic 3 + 1 components that can make any type of network system in Samchon Framework with IServer and IClient. Following the "chain of responsibility" pattern, looking around classes in Samchon Framework, you can see all related classes with network I/O are implemented from the IProtocol.

Author

Jeongho Nam http://samchon.org

Definition at line 31 of file IProtocol.hpp.

Constructor & Destructor Documentation

IProtocol::IProtocol

(

)

Default Constructor.

Definition at line 4 of file IProtocol.cpp.

Member Function Documentation

virtual void samchon::protocol::IProtocol::replyData ( std::shared_ptr< Invoke >  )

virtual

Reply a message.

Handles a replied Invoke message or shifts the responsibility to related chain.

Parameters

invoke

An Invoke message gotten from a network system

Reimplemented in samchon::protocol::service::User, samchon::protocol::service::Client, samchon::protocol::master::DistributedSystem, samchon::protocol::ExternalSystemArray, samchon::protocol::ExternalSystem, samchon::example::interaction::SlaveDriver, and samchon::protocol::master::DistributedSlaveSystemMediator.

Referenced by samchon::example::interaction::ChiefDriver::addClient(), samchon::example::interaction::MasterDriver::MasterDriver(), and samchon::protocol::service::Client::sendData().

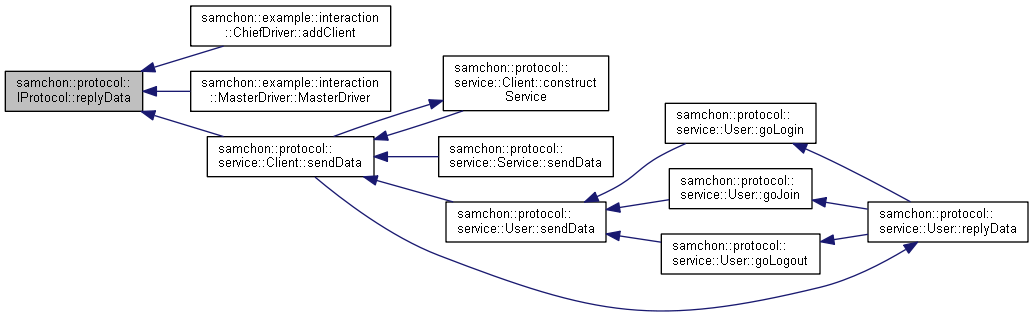

Here is the caller graph for this function:

virtual void samchon::protocol::IProtocol::sendData ( std::shared_ptr< Invoke >  )

virtual

Send a message.

Sends Invoke message to a network system or shifts the responsibility to related chain.

Parameters

invoke

An Invoke message to send to a network system

Reimplemented in samchon::protocol::service::User, samchon::protocol::master::DistributedSystem, samchon::protocol::service::Client, samchon::protocol::master::DistributedSystemRole, samchon::protocol::ExternalSystemArray, samchon::protocol::ExternalSystemRole, samchon::protocol::IClient, samchon::protocol::service::Service, and samchon::protocol::IWebClientBase.

---

The documentation for this class was generated from the following files:

• D:/OneDrive/Project/Samchon/framework/cpp/samchon/protocol/IProtocol.hpp
• D:/OneDrive/Project/Samchon/framework/cpp/samchon/protocol/IProtocol.cpp
