A role belongs to a system. More...

#include <SystemRole.hpp>

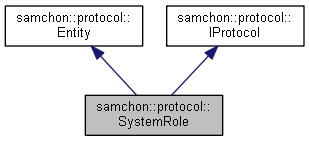

Collaboration diagram for samchon::protocol::SystemRole:

Public Member Functions
	SystemRole ()
	Default Constructor. More...

virtual void	construct (std::shared_ptr< library::XML >) override
	Construct data of the Entity from an XML object. More...

virtual auto	key () const -> std::string override
	Get a key that can identify the Entity uniquely. More...

auto	hasListener (const std::string &) const -> bool
	Test whether has a listener in the role. More...

virtual auto	TAG () const -> std::string override
	A tag name when represented by XML. More...

virtual auto	toXML () const -> std::shared_ptr< library::XML > override
	Get an XML object represents the Entity. More...

Public Member Functions inherited from samchon::protocol::Entity
	Entity ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::IProtocol
	IProtocol ()
	Default Constructor. More...

virtual void	replyData (std::shared_ptr< Invoke >)
	Reply a message. More...

virtual void	sendData (std::shared_ptr< Invoke >)
	Send a message. More...

Protected Attributes
std::string	name
	A name representing the role. More...

std::set< std::string >	listeners
	Listeners belongs to the role. More...

Detailed Description

A role belongs to a system.

SystemRole is an abstract and a 'control' class groupping methods, handling Invoke messages interacting with an system that the SystemRole is belonged to, by a subject or unit of a module.

Author: Jeongho Nam http://samchon.org

Definition at line 23 of file SystemRole.hpp.

Constructor & Destructor Documentation

SystemRole::SystemRole ( )

Default Constructor.

Definition at line 12 of file SystemRole.cpp.

Member Function Documentation

void SystemRole::construct ( std::shared_ptr< library::XML > )

overridevirtual

Construct data of the Entity from an XML object.

Overrides the construct() method and fetch data of member variables from the XML.

By recommended guidance, data representing member variables are contained in properties of the put XML object.

Parameters

xml	An xml used to construct data of entity

Implements samchon::protocol::Entity.

Definition at line 17 of file SystemRole.cpp.

References listeners, and name.

auto SystemRole::key ( ) const -> std::string

overridevirtual

Get a key that can identify the Entity uniquely.

If identifier of the Entity is not atomic value, returns a string represents the composite identifier. If identifier of the Entity is not string, converts the identifier to string and returns the string.

Returns: An identifier

Reimplemented from samchon::protocol::Entity.

Definition at line 33 of file SystemRole.cpp.

References name.

auto SystemRole::hasListener ( const std::string & ) const -> bool

Test whether has a listener in the role.

Definition at line 38 of file SystemRole.cpp.

References listeners, and name.

auto SystemRole::TAG ( ) const -> std::string

overridevirtual

A tag name when represented by XML.

Returns: A tag name

Implements samchon::protocol::Entity.

Definition at line 46 of file SystemRole.cpp.

auto SystemRole::toXML ( ) const -> std::shared_ptr<library::XML>

overridevirtual

Get an XML object represents the Entity.

Returns an XML object that can represents the Entity containing member variables into properties.

A member variable (not object, but atomic value like number, string or date) is categorized as a property within the framework of entity side. Thus, when overriding a toXML() method and archiving member variables to an XML object to return, puts each variable to be a property belongs to only an XML object.

Don't archive the member variable of atomic value to XML::value causing enormouse creation of XML objects to number of member variables. An Entity must be represented by only an XML instance (tag).

Standard Usage	Non-standard usage abusing value
<memberList> <member id='jhnam88' name='Jeongho+Nam' birthdate='1988-03-11' /> <member id='master' name='Administartor' birthdate='2011-07-28' /> </memberList>	<member> <id>jhnam88</id> <name>Jeongho+Nam</name> <birthdate>1988-03-11</birthdate> </member>
