samchon::protocol::ExternalServerArray Class Reference

An array of ExternalServer(s) More...

#include <ExternalServerArray.hpp>

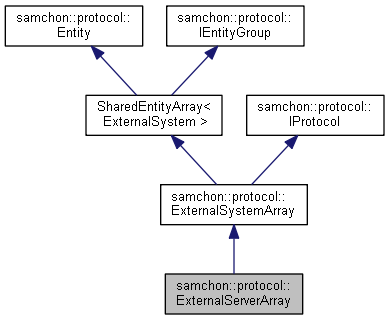

Collaboration diagram for samchon::protocol::ExternalServerArray:

Public Member Functions
virtual void	start () override
	Start interaction. More...
Public Member Functions inherited from samchon::protocol::ExternalSystemArray
	ExternalSystemArray ()
	Default Constructor. More...
auto	hasRole (const std::string &) const -> bool
	Test whether has a role. More...
auto	getRole (const std::string &) const -> std::shared_ptr< ExternalSystemRole >
	Get a role. More...
virtual void	sendData (std::shared_ptr< Invoke >) override
	Sends an Invoke message to related ExternalSystem(s). More...
virtual void	replyData (std::shared_ptr< Invoke >) override
	Handle replied Invoke message. More...
virtual auto	TAG () const -> std::string override
	A tag name when represented by XML. More...
virtual auto	CHILD_TAG () const -> std::string override
	A tag name of children. More...
Public Member Functions inherited from samchon::protocol::EntityGroup< _Container, _ETy, T >
	EntityGroup ()
	Default Constructor. More...
virtual void	construct (std::shared_ptr< library::XML > xml)
	Construct data of the Entity from an XML object. More...
auto	has (const std::string &key) const -> bool
	Indicates whether a container has an object having the specified identifier. More...
auto	get (const std::string &key) -> value_type &
	Access the element by specified identifier(key). More...
auto	get (const std::string &key) const -> const value_type &
	Access the const element by specified identifier(key). More...
virtual auto	toXML () const -> std::shared_ptr< library::XML >
	Get an XML object represents the EntityGroup. More...
Public Member Functions inherited from samchon::protocol::Entity
	Entity ()
	Default Constructor. More...
virtual auto	key () const -> std::string
	Get a key that can identify the Entity uniquely. More...
Public Member Functions inherited from samchon::protocol::IEntityGroup
	IEntityGroup ()
	Default Constructor. More...
Public Member Functions inherited from samchon::protocol::IProtocol
	IProtocol ()
	Default Constructor. More...

Additional Inherited Members
Protected Member Functions inherited from samchon::protocol::EntityGroup< _Container, _ETy, T >
virtual auto	createChild (std::shared_ptr< library::XML >) -> entity_type *=0
	Factory method of a child Entity. More...

Detailed Description

An array of ExternalServer(s)

ExternalServerArray is an ExternalSystemArray specialized in servers' driver.

[Inherited]

ExternalSystemArray is an abstract class containing and managing external system drivers.

Also, ExternalSystemArray can access to ExternalSystemRole(s) directly. With the method, you can use an ExternalSystemRole as "logical proxy" of an ExternalSystem. Of course, the ExternalSystemRole is belonged to an ExternalSystem. However, if you access an ExternalSystemRole from an ExternalSystemArray directly, not passing by a belonged ExternalSystem, and send an Invoke message even you're not knowing which ExternalSystem is related in, the ExternalSystemRole acted a role of proxy.

It's called as "Proxy pattern". With the pattern, you can only concentrate on ExternalSystemRole itself, what to do with Invoke message, irrespective of the ExternalSystemRole is belonged to which ExternalSystem.

ExternalSystemArray::getRole("something")->sendData(invoke);

Example Sources

• example::interaction

See also

samchon::protocol

Author

Jeongho Nam http://samchon.org

Definition at line 19 of file ExternalServerArray.hpp.

Member Function Documentation

void ExternalServerArray::start ( )

overridevirtual

Start interaction.

An abstract method starting interaction with external systems.

If external systems are servers, starts connection to them, else clients, opens a server and accepts the external systems. You can addict your own procudures of starting drivers, but if you directly override method of abstract ExternalSystemArray, be careful about virtual inheritance.

• DistributedClientArray::start() calls DistributedSystemArray::start() and ExternalClientArray:start()

Implements samchon::protocol::ExternalSystemArray.

Reimplemented in samchon::example::interaction::Chief, samchon::protocol::master::DistributedServerArrayMediator, samchon::protocol::master::ParallelServerArrayMediator, and samchon::protocol::master::DistributedServerArray.

Definition at line 15 of file ExternalServerArray.cpp.

References samchon::protocol::ExternalSystem::start().

Referenced by samchon::protocol::master::ParallelServerArrayMediator::start().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• D:/OneDrive/Project/Samchon/framework/cpp/samchon/protocol/ExternalServerArray.hpp
• D:/OneDrive/Project/Samchon/framework/cpp/samchon/protocol/ExternalServerArray.cpp
