A master for parallel system solving TSP problem. More...

#include <TSPMaster.hpp>

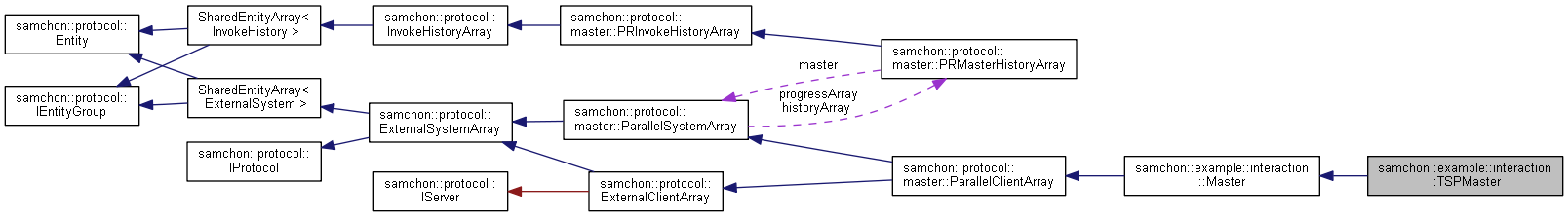

Collaboration diagram for samchon::example::interaction::TSPMaster:

[legend]

Public Member Functions
	TSPMaster ()
	Default Constructor. More...

Public Member Functions inherited from samchon::example::interaction::Master
	Master (int port)
	Construct from a port number to listen. More...

virtual void	start () override
	Start interaction. More...

Public Member Functions inherited from samchon::protocol::master::ParallelClientArray
	ParallelClientArray ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::master::ParallelSystemArray
	ParallelSystemArray ()
	Default Constructor. More...

void	sendSegmentData (std::shared_ptr< Invoke >, size_t)
	Send a message with segmentation size. More...

virtual void	sendPieceData (std::shared_ptr< Invoke >, size_t, size_t)
	Send a message with piece index and size. More...

Public Member Functions inherited from samchon::protocol::ExternalSystemArray
	ExternalSystemArray ()
	Default Constructor. More...

auto	hasRole (const std::string &) const -> bool
	Test whether has a role. More...

auto	getRole (const std::string &) const -> std::shared_ptr< ExternalSystemRole >
	Get a role. More...

virtual void	sendData (std::shared_ptr< Invoke >) override
	Sends an Invoke message to related ExternalSystem(s). More...

virtual void	replyData (std::shared_ptr< Invoke >) override
	Handle replied Invoke message. More...

virtual auto	TAG () const -> std::string override
	A tag name when represented by XML. More...

virtual auto	CHILD_TAG () const -> std::string override
	A tag name of children. More...

Public Member Functions inherited from samchon::protocol::EntityGroup< _Container, _ETy, T >
	EntityGroup ()
	Default Constructor. More...

auto	has (const std::string &key) const -> bool
	Indicates whether a container has an object having the specified identifier. More...

auto	get (const std::string &key) -> value_type &
	Access the element by specified identifier(key). More...

auto	get (const std::string &key) const -> const value_type &
	Access the const element by specified identifier(key). More...

Public Member Functions inherited from samchon::protocol::Entity
	Entity ()
	Default Constructor. More...

virtual auto	key () const -> std::string
	Get a key that can identify the Entity uniquely. More...

Public Member Functions inherited from samchon::protocol::IEntityGroup
	IEntityGroup ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::IProtocol
	IProtocol ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::ExternalClientArray
	ExternalClientArray ()
	Default Constructor. More...

virtual void	construct (std::shared_ptr< library::XML >) override
	Construct data of the Entity from an XML object. More...

virtual auto	toXML () const -> std::shared_ptr< library::XML > override
	Get an XML object represents the EntityGroup. More...

Static Public Member Functions
static void	main ()
	Main function. More...

Protected Member Functions
virtual void	optimize (shared_ptr< XML > xml) override
	Optimize something. More...

virtual void	replyOptimization (shared_ptr< XML > xml) override
	Handle (replied) optimized value from a slave system. More...

Protected Member Functions inherited from samchon::example::interaction::Master
virtual void	addClient (Socket *socket) override
	Handling connection of a physical client. More...

Protected Member Functions inherited from samchon::protocol::master::ParallelSystemArray
virtual void	notifyEnd (PRMasterHistory *)
	Notify end of a master history. More...

Protected Member Functions inherited from samchon::protocol::EntityGroup< _Container, _ETy, T >
virtual auto	createChild (std::shared_ptr< library::XML >) -> entity_type *=0
	Factory method of a child Entity. More...

Protected Member Functions inherited from samchon::protocol::ExternalClientArray
virtual auto	PORT () const -> int
	Port number of the server. More...

virtual auto	MY_IP () const -> std::string
	(optional) Server's IP More...

Additional Inherited Members
Protected Attributes inherited from samchon::example::interaction::Master
unique_ptr< ChiefDriver >	chiefDriver
	A boundary object interacting with a Cheif. More...

mutex	mtx
	A mutex for optimization. More...

size_t	optimized
	Number of slaves who'd completed an optimization. More...

Protected Attributes inherited from samchon::protocol::ExternalClientArray
std::string	myIP
	A custom ip address of my system to bind. More...

int	port
	A port number for accepting external clients. More...

Detailed Description

A master for parallel system solving TSP problem.

[Inherited]

Master is an abstract and example class, for providing guidance of realizing parallel processing system for users, within framework of master. The Master class represents a master of parallel processing system in the master side.

A master system (represented by Master and MasterDriver) is associated with a chief system (represented by Cheif and CheifDriver) and slave systems (Slave and SlaveDriver). The master system gets optimization order from chief system and shifts and distributes orders to its slave systems. When slave systems report optimization result, the master system aggregates those results and reports the aggregated results to chief system.

[Inherited]

See also: master

Author: Jeongho Nam http://samchon.org; Jeongho Nam http://samchon.org

Definition at line 30 of file TSPMaster.hpp.

Constructor & Destructor Documentation

samchon::example::interaction::TSPMaster::TSPMaster ( )

inline

Default Constructor.

Definition at line 46 of file TSPMaster.hpp.

Member Function Documentation

virtual void samchon::example::interaction::TSPMaster::optimize ( shared_ptr< XML > xml )

inlineoverrideprotectedvirtual

Optimize something.

Master gets an XML object representing parametric value and basic data used for optimzation are came from Cheif. Master constructs some object to optimize and distributes the optimization order to master's slave systems by segmentation.

Parameters

xml	XML object representing parametric value and basic data used for optimization.

Reimplemented from samchon::example::interaction::Master.

Definition at line 57 of file TSPMaster.hpp.

virtual void samchon::example::interaction::TSPMaster::replyOptimization ( shared_ptr< XML > xml )

inlineoverrideprotectedvirtual

Handle (replied) optimized value from a slave system.

When gets optimization result from Slave systems, Master aggregates them and derives the best solution between those results and reports the best solution to the Cheif system.

Parameters
