A boundary class interacting with a Chief system. More...

#include <ChiefDriver.hpp>

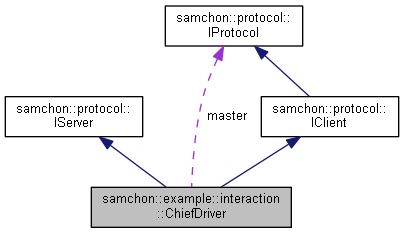

Collaboration diagram for samchon::example::interaction::ChiefDriver:

Public Member Functions
	ChiefDriver (IProtocol *master, int port)
	Construct from master and port number. More...

virtual void	addClient (Socket *socket) override
	Handling connection of a physical client. More...

Public Member Functions inherited from samchon::protocol::IServer
	IServer ()
	Default Constructor. More...

virtual void	open ()
	Open the server. More...

virtual void	close ()
	Close the server. More...

Public Member Functions inherited from samchon::protocol::IClient
	IClient ()
	Default Constructor. More...

virtual void	listen ()
	Listens message from a related system. More...

virtual void	sendData (std::shared_ptr< Invoke >)
	Sends message to a related system. More...

Public Member Functions inherited from samchon::protocol::IProtocol
	IProtocol ()
	Default Constructor. More...

virtual void	replyData (std::shared_ptr< Invoke >)
	Reply a message. More...

Protected Member Functions
virtual auto	PORT () const -> int override
	Port number of the server. More...

Protected Member Functions inherited from samchon::protocol::IServer
virtual auto	MY_IP () const -> std::string
	(optional) Server's IP More...

Protected Member Functions inherited from samchon::protocol::IClient
virtual auto	BUFFER_SIZE () const -> size_t
	Buffer size of network I/O. More...

virtual void	_replyData (std::shared_ptr< Invoke >)
	A method for pre-processing replied Invoke message. More...

Protected Attributes
IProtocol *	master
	A Master object containing the ChiefDriver. More...

int	port
	A port number to open for the Chief system. More...

mutex	mtx
	A mutex for realizing 1:1 server. More...

Protected Attributes inherited from samchon::protocol::IServer
Acceptor *	acceptor
	An acceptor for clients. More...

Protected Attributes inherited from samchon::protocol::IClient
Socket *	socket
	Socket for network I/O. More...

std::mutex *	sendMtx
	A mutex for sending message. More...

Detailed Description

A boundary class interacting with a Chief system.

ChiefDriver is a boundary class interacting with a chief system as a server. However, the ChiefDriver represents a weird server that accepts only a client, the chief system.

The ChiefDriver is built for providing a guidance for designing a boundary class which is representing an unusual system within framework of OOD, handling a network system like a software class of Object-Oriented Design.

[Inherited] IServer

[Inherited] IClient

See also: protocol

Author: Jeongho Nam http://samchon.org

Definition at line 46 of file ChiefDriver.hpp.

Constructor & Destructor Documentation

samchon::example::interaction::ChiefDriver::ChiefDriver	(	IProtocol *	master,
		int	port
	)

inline

Construct from master and port number.

Parameters

master	A master object associated with the chief system.
port	A port number to open for chief system.

Definition at line 76 of file ChiefDriver.hpp.

Member Function Documentation

virtual void samchon::example::interaction::ChiefDriver::addClient ( Socket * )

inlineoverridevirtual

Handling connection of a physical client.

Implements samchon::protocol::IServer.

Reimplemented in samchon::example::interaction::Reporter.

Definition at line 85 of file ChiefDriver.hpp.

References samchon::protocol::IProtocol::replyData().

Here is the call graph for this function:

virtual auto samchon::example::interaction::ChiefDriver::PORT ( ) const -> int

inlineoverrideprotectedvirtual

Port number of the server.

Reimplemented from samchon::protocol::IServer.

Definition at line 99 of file ChiefDriver.hpp.

Member Data Documentation

IProtocol* samchon::example::interaction::ChiefDriver::master

protected

A Master object containing the ChiefDriver.

Definition at line 57 of file ChiefDriver.hpp.

int samchon::example::interaction::ChiefDriver::port

protected

A port number to open for the Chief system.

Definition at line 62 of file ChiefDriver.hpp.

mutex samchon::example::interaction::ChiefDriver::mtx

protected

A mutex for realizing 1:1 server.

Definition at line 67 of file ChiefDriver.hpp.

The documentation for this class was generated from the following file:

D:/OneDrive/Project/Samchon/framework/cpp/samchon/example/interaction/ChiefDriver.hpp
