A slave system for optimizing something. More...

#include <Slave.hpp>

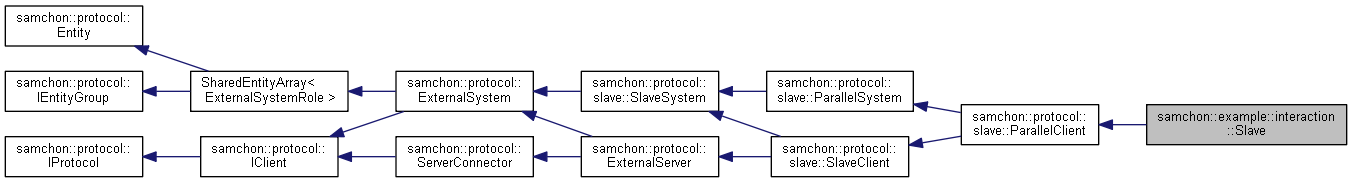

Collaboration diagram for samchon::example::interaction::Slave:

[legend]

Public Member Functions
	Slave (const string &ip, int port)
	Construct from ip address and port number of master. More...

Public Member Functions inherited from samchon::protocol::slave::ParallelClient
	ParallelClient ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::slave::ParallelSystem
	ParallelSystem ()
	Default Constructor. More...

virtual void	replyPieceData (std::shared_ptr< Invoke >, size_t, size_t)=0
	Handle requested processes which are segmented. More...

Public Member Functions inherited from samchon::protocol::slave::SlaveSystem
	SlaveSystem ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::ExternalSystem
	ExternalSystem ()
	Default Constructor. More...

virtual auto	key () const -> std::string override
	Get a key that can identify the Entity uniquely. More...

virtual void	replyData (std::shared_ptr< Invoke >) override
	Handling replied message from an external system. More...

virtual auto	TAG () const -> std::string override
	A tag name when represented by XML. More...

virtual auto	CHILD_TAG () const -> std::string override
	A tag name of children. More...

Public Member Functions inherited from samchon::protocol::EntityGroup< _Container, _ETy, T >
	EntityGroup ()
	Default Constructor. More...

auto	has (const std::string &key) const -> bool
	Indicates whether a container has an object having the specified identifier. More...

auto	get (const std::string &key) -> value_type &
	Access the element by specified identifier(key). More...

auto	get (const std::string &key) const -> const value_type &
	Access the const element by specified identifier(key). More...

Public Member Functions inherited from samchon::protocol::Entity
	Entity ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::IEntityGroup
	IEntityGroup ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::IClient
	IClient ()
	Default Constructor. More...

virtual void	listen ()
	Listens message from a related system. More...

virtual void	sendData (std::shared_ptr< Invoke >)
	Sends message to a related system. More...

Public Member Functions inherited from samchon::protocol::IProtocol
	IProtocol ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::slave::SlaveClient
	SlaveClient ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::ExternalServer
	ExternalServer ()
	Default Constructor. More...

virtual void	construct (std::shared_ptr< library::XML >) override
	Construct data of the Entity from an XML object. More...

virtual void	start () override
	Start interaction. More...

virtual auto	getIP () const -> std::string override
	Destinatio IP. More...

virtual auto	getPort () const -> int override
	Destination port. More...

virtual auto	getMyIP () const -> std::string override
	(optional) My IP, if you want to bind More...

virtual auto	toXML () const -> std::shared_ptr< library::XML > override
	Get an XML object represents the EntityGroup. More...

Public Member Functions inherited from samchon::protocol::ServerConnector
	ServerConnector ()
	Default Constructor. More...

virtual void	connect ()
	Connect to a server. More...

Protected Member Functions
virtual void	optimize (shared_ptr< XML > xml, size_t index, size_t size)
	Optimize something and report the result. More...

void	sendOptimization (shared_ptr< XML > xml)
	Send (report) optimization result to its master system. More...

Protected Member Functions inherited from samchon::protocol::slave::ParallelSystem
virtual auto	createChild (std::shared_ptr< library::XML >) -> ExternalSystemRole *override
	Factory method of a child Entity. More...

virtual void	_replyData (std::shared_ptr< Invoke >) override
	Pre-processor for segmented processes and reporting elapsed time. More...

Protected Member Functions inherited from samchon::protocol::IClient
virtual auto	BUFFER_SIZE () const -> size_t
	Buffer size of network I/O. More...

Additional Inherited Members
Protected Attributes inherited from samchon::protocol::ExternalSystem
std::string	name
	A name can identify an external system. More...

std::string	ip
	An ip address of an external system. More...

int	port
	A port number of an external system. More...

Protected Attributes inherited from samchon::protocol::IClient
Socket *	socket
	Socket for network I/O. More...

std::mutex *	sendMtx
	A mutex for sending message. More...

Protected Attributes inherited from samchon::protocol::ExternalServer
std::string	myIP
	A custom ip address of my system to bind. More...

Protected Attributes inherited from samchon::protocol::ServerConnector
boost::asio::io_service *	ioService
	An io_service of Boost.Asio's own. More...

EndPoint *	endPoint
	An endpoint directing a server. More...

EndPoint *	localEndPoint
	(Optional) An local endpoint of the client (my system) More...

Detailed Description

A slave system for optimizing something.

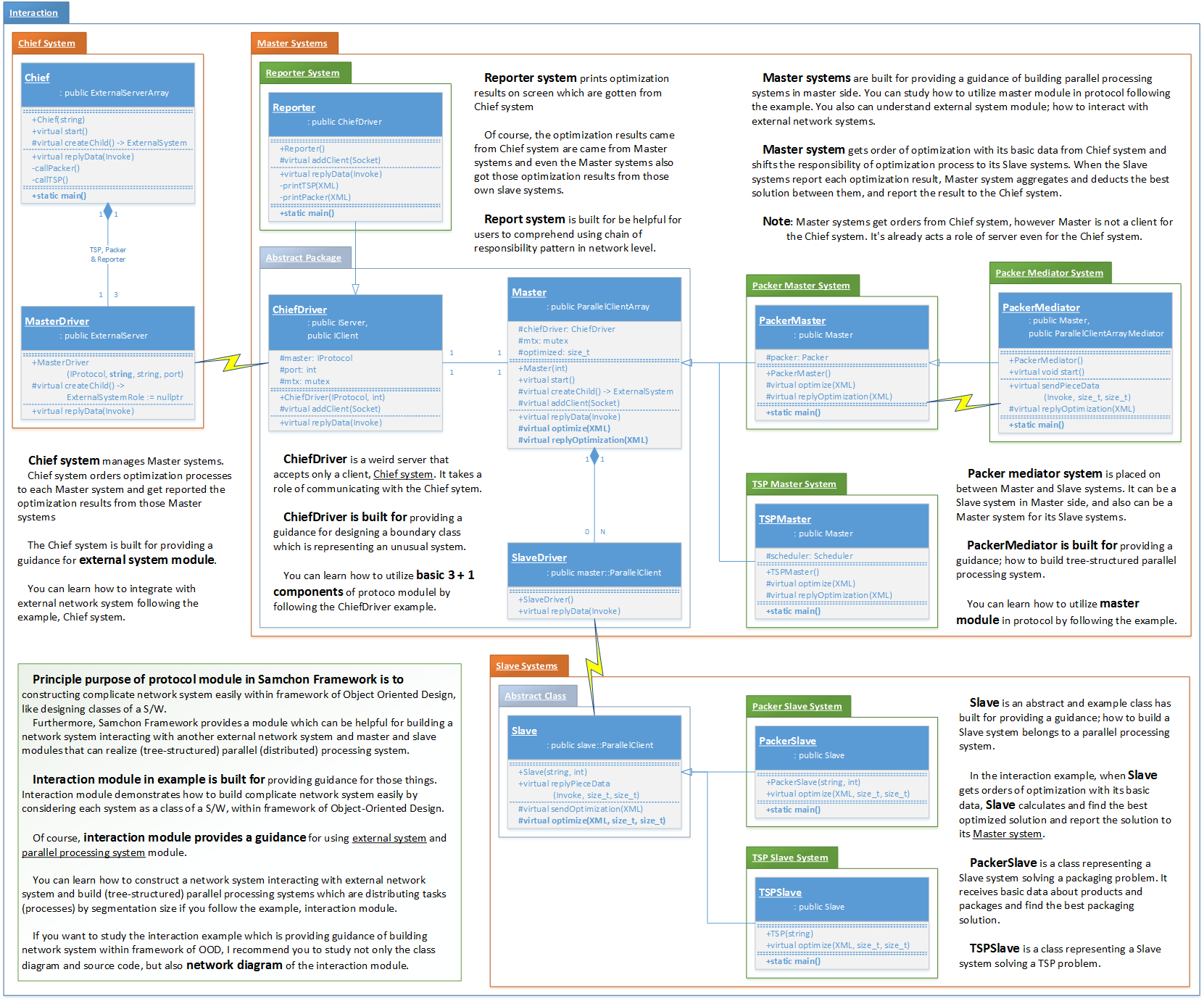

Slave is an abstract and example class, for providing guidance of realizing parallel processsing system for useres, within framework of slave. The Slave class represents a slave system literally. You can study how to utilize the slave module in protocol.

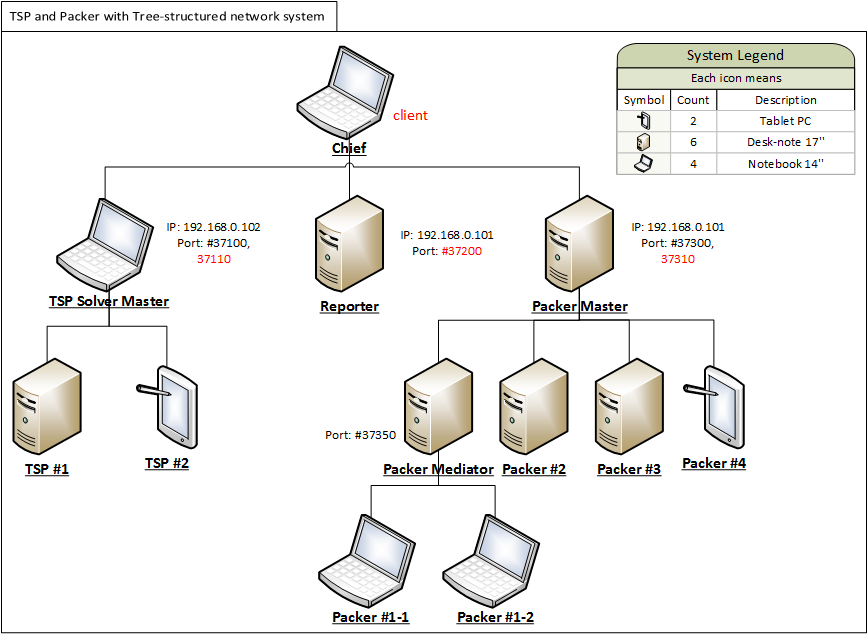

A slave system (represented by Slave and SlaveDriver) is associated with a master (represented by Master and MasterSlave) or mediator (PackerMediator) system. When slave system gets order of optimization with its basic data, slave system calculates and derives the best solution and reports it to the master system.

[Inherited]

See also: protocol::slave

Author: Jeongho Nam http://samchon.org

Definition at line 43 of file Slave.hpp.

Constructor & Destructor Documentation

samchon::example::interaction::Slave::Slave	(	const string &	ip,
		int	port
	)

inline

Construct from ip address and port number of master.

Parameters

ip	IP address of master.
port	Port number of master.

Definition at line 59 of file Slave.hpp.

Member Function Documentation

virtual void samchon::example::interaction::Slave::optimize	(	shared_ptr< XML >	xml,
		size_t	index,
		size_t	size
	)

inlineprotectedvirtual

Optimize something and report the result.

Parameters

xml	XML object representing a Travel.
index	Starting index of a segmentation allocated to the Slave.
size	Size of the segmentation.

Reimplemented in samchon::example::interaction::PackerSlave, and samchon::example::interaction::TSPSlave.

Definition at line 89 of file Slave.hpp.

void samchon::example::interaction::Slave::sendOptimization ( shared_ptr< XML > xml )

inlineprotected

Send (report) optimization result to its master system.

Parameters

xml	XML object representing the best solution.

Definition at line 101 of file Slave.hpp.

The documentation for this class was generated from the following file:

D:/OneDrive/Project/Samchon/framework/cpp/samchon/example/interaction/Slave.hpp
