An interface for a client. More...

#include <IClient.hpp>

Collaboration diagram for samchon::protocol::IClient:

Public Member Functions
	IClient ()
	Default Constructor. More...

virtual void	listen ()
	Listens message from a related system. More...

virtual void	sendData (std::shared_ptr< Invoke >)
	Sends message to a related system. More...

Public Member Functions inherited from samchon::protocol::IProtocol
	IProtocol ()
	Default Constructor. More...

virtual void	replyData (std::shared_ptr< Invoke >)
	Reply a message. More...

Protected Member Functions
virtual auto	BUFFER_SIZE () const -> size_t
	Buffer size of network I/O. More...

virtual void	_replyData (std::shared_ptr< Invoke >)
	A method for pre-processing replied Invoke message. More...

Protected Attributes
Socket *	socket
	Socket for network I/O. More...

std::mutex *	sendMtx
	A mutex for sending message. More...

Detailed Description

An interface for a client.

IClient is an interface not only for a physical client, but also a driver for a client in a physical server.

IServer:addClient()
- service::Server -> service::User -> service::Client
- ExternalClientArray (A physical server) -> ExternalClient (A driver of a client)

IClient is one of the basic 3 + 1 components that can make any type of network system in Samchon Framework with IProtocol and IServer. Looking around classes in Samchon Framework, you can see all classes related with client are implemented from the IClient.

IClient takes a role of real network I/O. IClient sends data to otherside network system from IProtocol::sendData(). IClient also gets data from otherside network system, generates standard Invoke message from parsing the replied data and shift the Invoke message to IProtocol::replyData().

Author: Jeongho Nam http://samchon.org

Definition at line 53 of file IClient.hpp.

Constructor & Destructor Documentation

IClient::IClient ( )

Default Constructor.

Definition at line 30 of file IClient.cpp.

Member Function Documentation

auto IClient::BUFFER_SIZE ( ) const -> size_t

protectedvirtual

Buffer size of network I/O.

Definition at line 25 of file IClient.cpp.

Referenced by samchon::protocol::IWebClientBase::listen().

Here is the caller graph for this function:

void IClient::listen ( )

virtual

Listens message from a related system.

Note: It holds (monopolies) a thread.

Reimplemented in samchon::protocol::IWebClientBase.

Definition at line 45 of file IClient.cpp.

References samchon::WeakString::betweens(), samchon::ByteArray::getPosition(), samchon::ByteArray::read(), and samchon::ByteArray::setPosition().

Referenced by samchon::example::console_chat_server::ChatServer::addClient(), samchon::protocol::ExternalClient::start(), and samchon::protocol::ExternalServer::start().

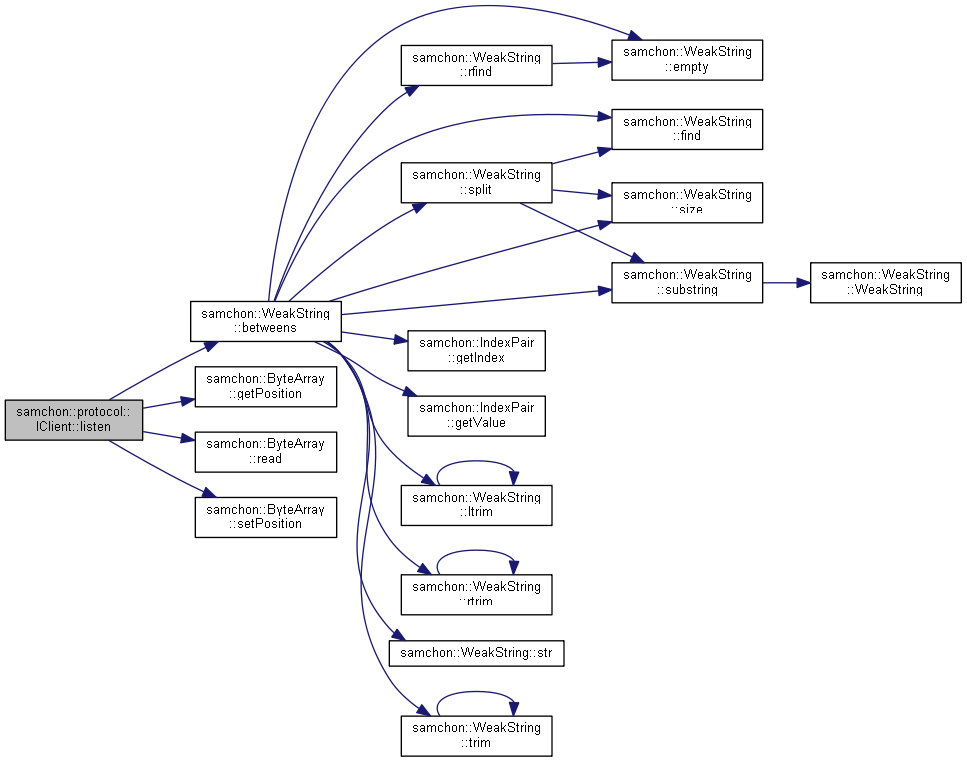

Here is the call graph for this function:

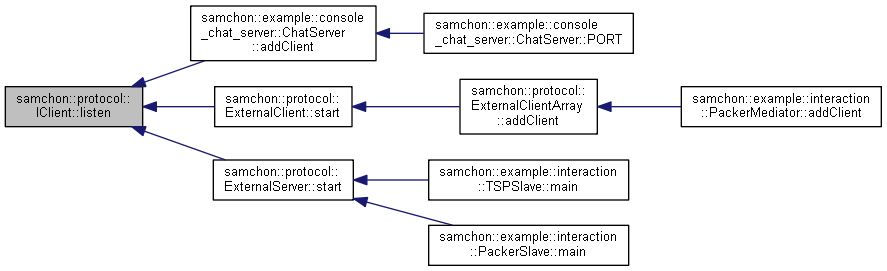

Here is the caller graph for this function:

void IClient::sendData ( std::shared_ptr< Invoke > )

virtual

Sends message to a related system.

Parameters

invoke Invoke message to send

Reimplemented from samchon::protocol::IProtocol.

Reimplemented in samchon::protocol::master::DistributedSystem, samchon::protocol::service::Client, and samchon::protocol::IWebClientBase.

Definition at line 309 of file IClient.cpp.

Referenced by samchon::protocol::slave::SlaveSystem::_replyData(), samchon::protocol::master::ParallelSystemArrayMediator::notifyEnd(), samchon::protocol::slave::ParallelSystem::ParallelSystem(), samchon::example::interaction::PackerMediator::replyOptimization(), samchon::protocol::ExternalSystemRole::sendData(), samchon::protocol::master::DistributedSystem::sendData(), and samchon::protocol::master::ParallelSystem::sendPieceData().

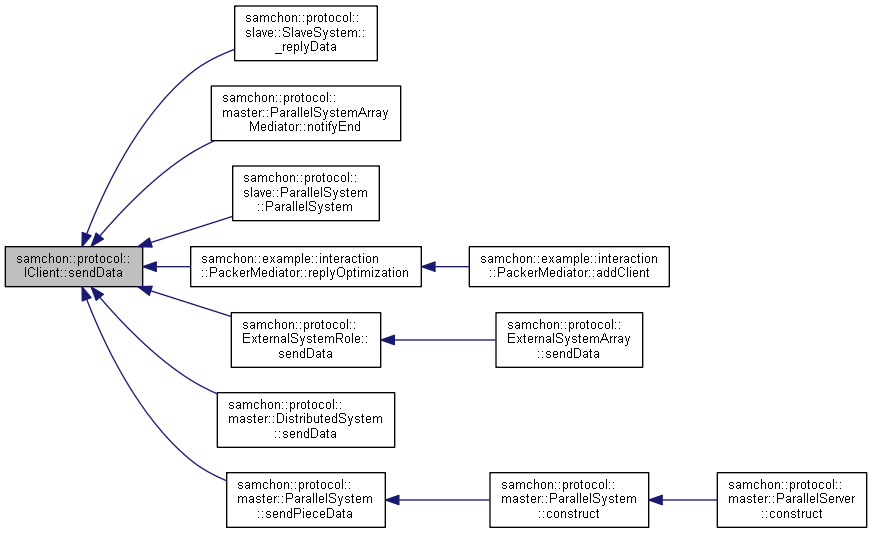

Here is the caller graph for this function:

void IClient::_replyData ( std::shared_ptr< Invoke > )

protectedvirtual

A method for pre-processing replied Invoke message.

You can realize a pre-processing about the replied Invoke message by overriding the IClient::_replyData().

Archiving a history log, filtering and truncating, let handling the message with a new thread, calculating performance by estimating elapsed time about the Invoke message, and so on. Anything you can define pre-processing works before IProtocol::replyData().
