samchon::protocol::service::Server Class Reference

A server for (cloud) service. More...

#include <Server.hpp>

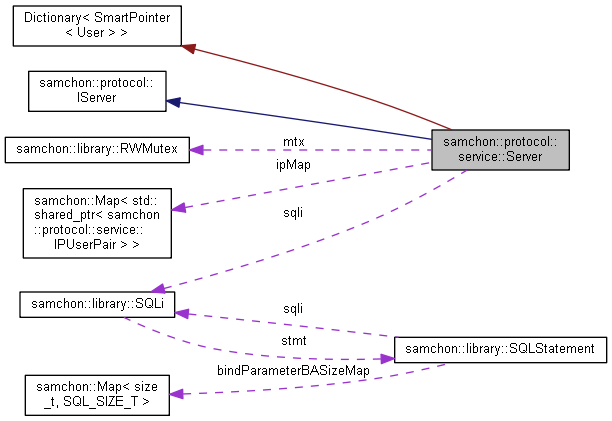

Collaboration diagram for samchon::protocol::service::Server:

Public Member Functions
	Server ()
	Default Constructor. More...
auto	size () const -> size_t
	Size of User(s). More...
auto	begin () const -> const_iterator
	A const iterator of begin. More...
auto	end () const -> const_iterator
	A const iterator of end. More...
Public Member Functions inherited from samchon::protocol::IServer
	IServer ()
	Default Constructor. More...
virtual void	open ()
	Open the server. More...
virtual void	close ()
	Close the server. More...

Protected Member Functions
virtual auto	NAME () const -> std::string=0
	A name can be an identifier of a cloud server. More...
virtual auto	createUser () -> User *=0
	Factory method of User. More...
virtual void	addClient (Socket *) override
	Handling connection of a client. More...
Protected Member Functions inherited from samchon::protocol::IServer
virtual auto	MY_IP () const -> std::string
	(optional) Server's IP More...
virtual auto	PORT () const -> int=NULL
	Port number of the server. More...

Protected Attributes
library::SQLi *	sqli
	SQLi for archiving log. More...
Protected Attributes inherited from samchon::protocol::IServer
Acceptor *	acceptor
	An acceptor for clients. More...

Private Attributes
Dictionary< std::shared_ptr< IPUserPair > >	ipMap
	Dictionary of issuer of session ID of each ip. More...
size_t	sequence
	Sequence for issuing session ID. More...

Additional Inherited Members
Private Member Functions inherited from samchon::Map< _Kty, _Ty, _Pr, _Alloc >
auto	has (const _Kty &key) const -> bool
	Whether have the item or not. More...
auto	get (const _Kty &key) -> _Ty &
	Get element. More...
void	set (const _Kty &key, const _Ty &val)
	Set element. More...
auto	pop (const _Kty &key) -> _Ty
	Pop item. More...

Detailed Description

A server for (cloud) service.

A server class representing the real physical server of a cloud.

The Server is very good for development of a cloud server. You can use web or flex as (physical) client. The usage is very simple. In the class Server, what you need to do are overriding getter of port number and factory method creating an User.

Note

Override those methods.

• Server::NAME()
• Server::PORT()
• Server::createUser()

See also

samchon::protocol

samchon::protocol::service

Author

Jeongho Nam http://samchon.org

Definition at line 48 of file Server.hpp.

Constructor & Destructor Documentation

Server::Server

(

)

Default Constructor.

Definition at line 31 of file Server.cpp.

References sequence, and sqli.

Member Function Documentation

virtual auto samchon::protocol::service::Server::NAME ( ) const -> std::string

protectedpure virtual

A name can be an identifier of a cloud server.

auto Server::size

(

)

const -> size_t

Size of User(s).

Definition at line 53 of file Server.cpp.

auto Server::begin

(

)

const -> const_iterator

A const iterator of begin.

Note

Be careful about concurrency

Definition at line 57 of file Server.cpp.

Referenced by samchon::example::chat_service::ChatRoomArray::notify().

Here is the caller graph for this function:

auto Server::end

(

)

const -> const_iterator

A const iterator of end.

Note

Be careful about concurrency

Definition at line 61 of file Server.cpp.

Referenced by addClient(), and samchon::example::chat_service::ChatRoomArray::notify().

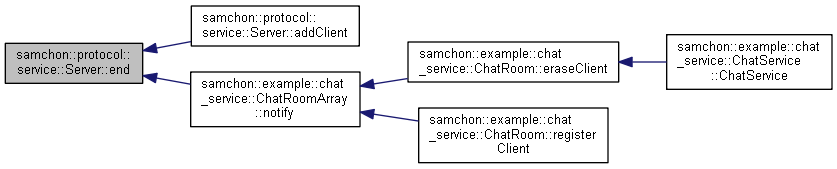

Here is the caller graph for this function:

virtual auto samchon::protocol::service::Server::createUser ( ) -> User *

protectedpure virtual

Factory method of User.

Implemented in samchon::example::chat_service::ChatServer.

Referenced by addClient().

Here is the caller graph for this function:

void Server::addClient ( Socket *  socket )

overrideprotectedvirtual

Handling connection of a client.

Implements samchon::protocol::IServer.

Definition at line 69 of file Server.cpp.

References createUser(), end(), samchon::SmartPointer< _Ty >::get(), samchon::Map< _Kty, _Ty, _Pr, _Alloc >::has(), samchon::protocol::service::IPUserPair::ip, ipMap, sequence, and samchon::protocol::service::IPUserPair::userSet.

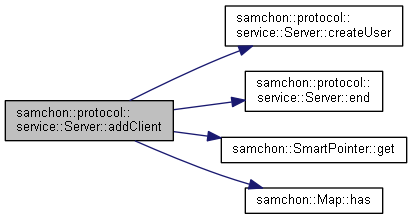

Here is the call graph for this function:

Member Data Documentation

library::SQLi* samchon::protocol::service::Server::sqli

protected

SQLi for archiving log.

Definition at line 67 of file Server.hpp.

Referenced by Server().

Dictionary<std::shared_ptr<IPUserPair> > samchon::protocol::service::Server::ipMap

private

Dictionary of issuer of session ID of each ip.

Definition at line 75 of file Server.hpp.

Referenced by addClient().

size_t samchon::protocol::service::Server::sequence

private

Sequence for issuing session ID.

Definition at line 80 of file Server.hpp.

Referenced by addClient(), and Server().

---

The documentation for this class was generated from the following files:

• D:/OneDrive/Project/Samchon/framework/cpp/samchon/protocol/service/Server.hpp
• D:/OneDrive/Project/Samchon/framework/cpp/samchon/protocol/service/Server.cpp
