User containing Client(s) with session-id. More...

#include <User.hpp>

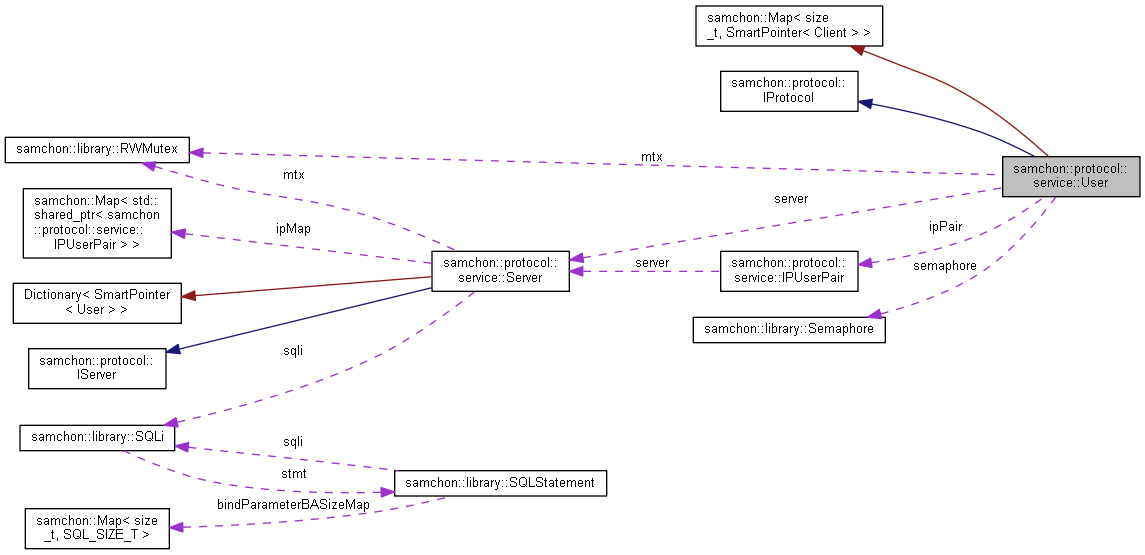

Collaboration diagram for samchon::protocol::service::User:

[legend]

Public Member Functions
	User (Server *)
	Construct from server. More...

auto	getServer () const -> Server *
	Get server. More...

auto	getSemaphore () const -> library::Semaphore *
	Get semaphore. More...

auto	getID () const -> std::string
	Get user's account id. More...

auto	getAuthority () const -> int
	Get authority of user. More...

virtual void	sendData (std::shared_ptr< Invoke >) override
	Send a message. More...

virtual void	replyData (std::shared_ptr< Invoke >) override
	Reply a message. More...

Public Member Functions inherited from samchon::protocol::IProtocol
	IProtocol ()
	Default Constructor. More...

Protected Member Functions
virtual auto	createClient () -> Client *=0
	Factory method of a Client. More...

virtual auto	doLogin (std::shared_ptr< Invoke >) -> bool=0
	Login and return whether success. More...

virtual auto	doJoin (std::shared_ptr< Invoke >) -> bool=0
	Join and returns whether success. More...

Private Member Functions
void	addClient (Socket *)
	Add a client in user. More...

void	eraseClient (size_t)
	Erase a Client. More...

void	goLogin (std::shared_ptr< Invoke >)
	Log-in. More...

void	goJoin (std::shared_ptr< Invoke >)
	Join as a member. More...

virtual void	goLogout ()
	Log-out. More...

Private Member Functions inherited from samchon::Map< size_t, SmartPointer< Client > >
auto	has (const size_t &key) const -> bool
	Whether have the item or not. More...

auto	get (const size_t &key) -> SmartPointer< Client > &
	Get element. More...

void	set (const size_t &key, const SmartPointer< Client > &val)
	Set element. More...

auto	pop (const size_t &key) -> SmartPointer< Client >
	Pop item. More...

Private Attributes
Server *	server
	Server containing the user. More...

std::string	sessionID
	Session ID of the user. More...

library::RWMutex	mtx
	Mutex for container. More...

library::Semaphore *	semaphore
	Semaphore to limit number of thread. More...

std::string	id
	Account id. More...

int	authority
	Authority allocated to user. More...

Detailed Description

User containing Client(s) with session-id.

The User does not have any network I/O and its own special work something to do. It's a container for groupping clients by their session id. Thus, the User corresponds with an user (Computer) and Client corresponds with a client (A browser window)

Override those methods

Author: Jeongho Nam http://samchon.org

Definition at line 56 of file User.hpp.

Constructor & Destructor Documentation

User::User ( Server * server )

Construct from server.

Parameters

server	A server who containing users and clients
sessionID	A session ID for discriminating User; A logical identifier

Definition at line 24 of file User.cpp.

References authority, semaphore, and server.

Member Function Documentation

auto User::getServer ( ) const -> Server*

Get server.

Definition at line 42 of file User.cpp.

References server.

auto User::getSemaphore ( ) const -> library::Semaphore*

Get semaphore.

See also: User::semaphore

Definition at line 55 of file User.cpp.

References semaphore.

Referenced by samchon::protocol::service::Client::sendData().

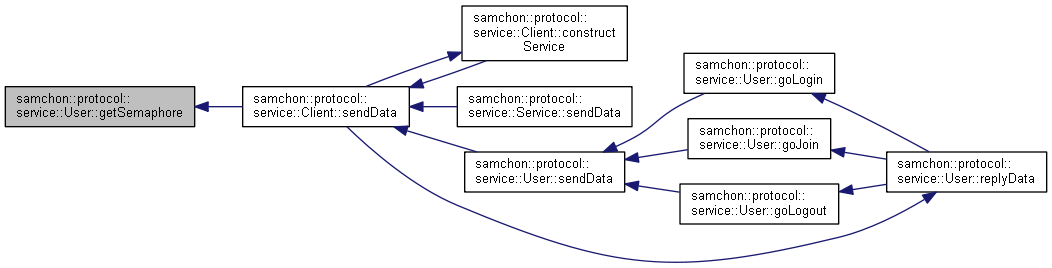

Here is the caller graph for this function:

auto User::getID ( ) const -> std::string

Get user's account id.

Definition at line 46 of file User.cpp.

References id.

Referenced by samchon::example::chat_service::ChatRoom::toXML().

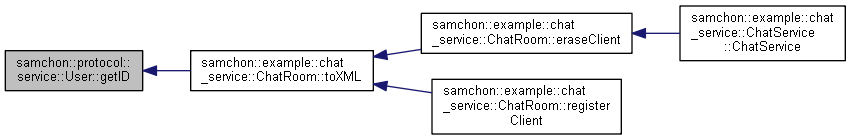

Here is the caller graph for this function:

auto User::getAuthority ( ) const -> int

Get authority of user.

See also: User::authority

Definition at line 50 of file User.cpp.

References authority.

Referenced by samchon::protocol::service::Client::constructService().

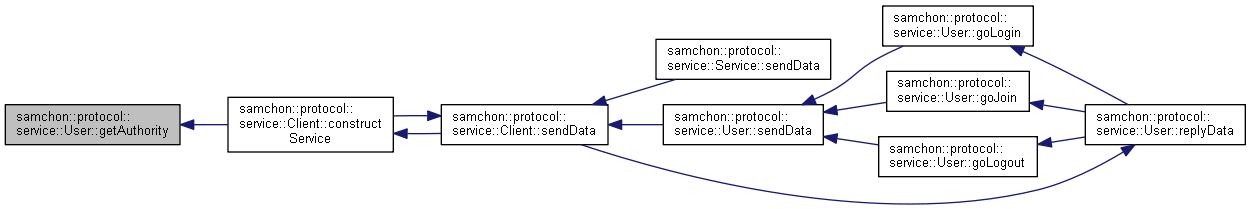

Here is the caller graph for this function:

virtual auto samchon::protocol::service::User::createClient ( ) -> Client *

protectedpure virtual

Factory method of a Client.

Implemented in samchon::example::chat_service::ChatUser.

Referenced by addClient().

Here is the caller graph for this function:

void User::addClient ( Socket * socket )

private

Add a client in user.

Parameters

socket Socket for interacting with (physical) client

Definition at line 76 of file User.cpp.

References createClient(), eraseClient(), mtx, and samchon::library::UniqueWriteLock::unlock().

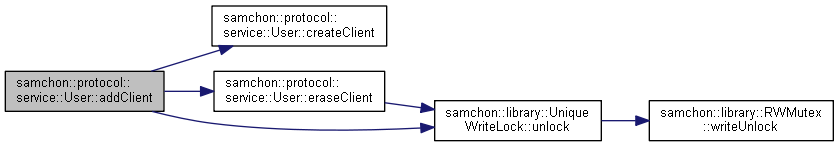

Here is the call graph for this function:

void User::eraseClient ( size_t no )

private

Erase a Client.

Erase a Client from User by its key(no:int).

When a network connection between server and user(person) was disconnected, matched Client is erased from User and the Client object will be destructed.

Some reasons of disconnection

An user(not object but person using UI) closed the Window
A "closeWindow" command has sent to the Window
A network failure has occured

If the Client was the last object remained in the User, the User will be destructed too. However, the User is not destructed directly but waits for 15 seconds. In the 15 seconds, another Client object was created in User, the User doesn't be destructed.

Some reasons of postponing destruction for 15 seconds

Page direction(href) or redirection in a browser.
Temporary network failure.

Note

There're some tasks that have to completed irrespectively of network connection.

In that case, although user closed the window or logged-out, matched User, Client and Service objects haven't be destructed. They must stay alive until the tasks have completed.

To stay those objects User, Client and Service, use follwing macros. Those macros assure the objects to stay alive until the termination matched each stack.

KEEP_USER_ALIVE(Client*)
KEEP_CLIENT_ALIVE
KEEP_SERVICE_ALIVE

Parameters

no	Sequence number of the client in user

Definition at line 94 of file User.cpp.

References mtx, server, sessionID, and samchon::library::UniqueWriteLock::unlock().

Referenced by addClient().

Here is the call graph for this function:

Here is the caller graph for this function:

void User::goLogin ( std::shared_ptr< Invoke > )

private

Log-in.

Parameters

client
invoke

See also: User::doLogin()

Definition at line 111 of file User.cpp.

References authority, doLogin(), and sendData().

Referenced by replyData().

Here is the call graph for this function:

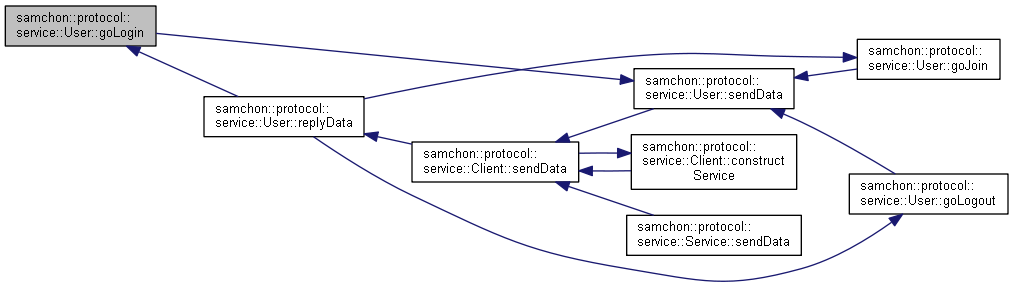

Here is the caller graph for this function:

void User::goJoin ( std::shared_ptr< Invoke > )

private

Join as a member.

Parameters

client	An application; who requested the join command
invoke	AN invoke message containing parameters of joinning

See also: User::doJoin()

Definition at line 121 of file User.cpp.

References doJoin(), and sendData().

Referenced by replyData().

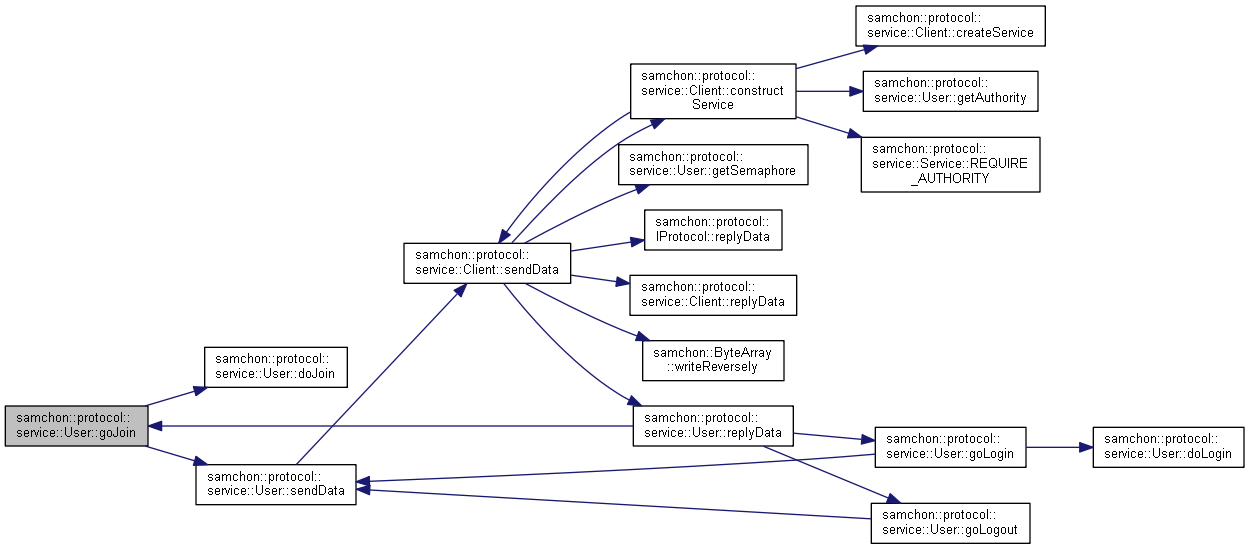

Here is the call graph for this function:

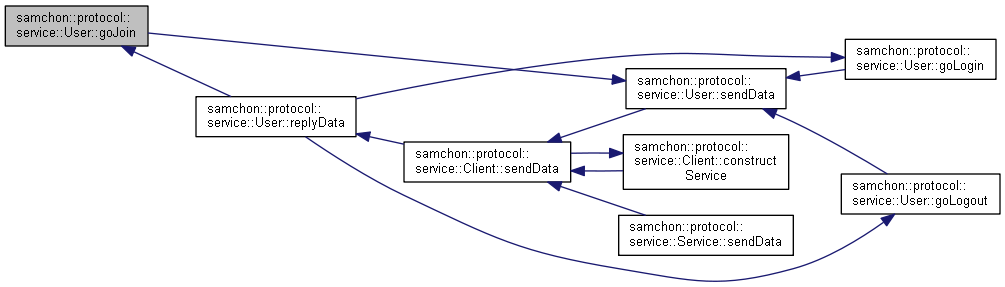

Here is the caller graph for this function:

void User::goLogout ( )

privatevirtual

Log-out.

Log-out account; change id and authority to "guest" and 0.

Default is to send "closeWindow" message to all clients except the applicant.

Perspective on UI:

All windows of the user will be closed by getting an invoke message "closeWindow" except who requested the command log-out.

The applicant window will moved to default log-in page.

Parameters

client A window of browser; client who requested the log-out command

Definition at line 130 of file User.cpp.

References authority, and sendData().

Referenced by replyData().

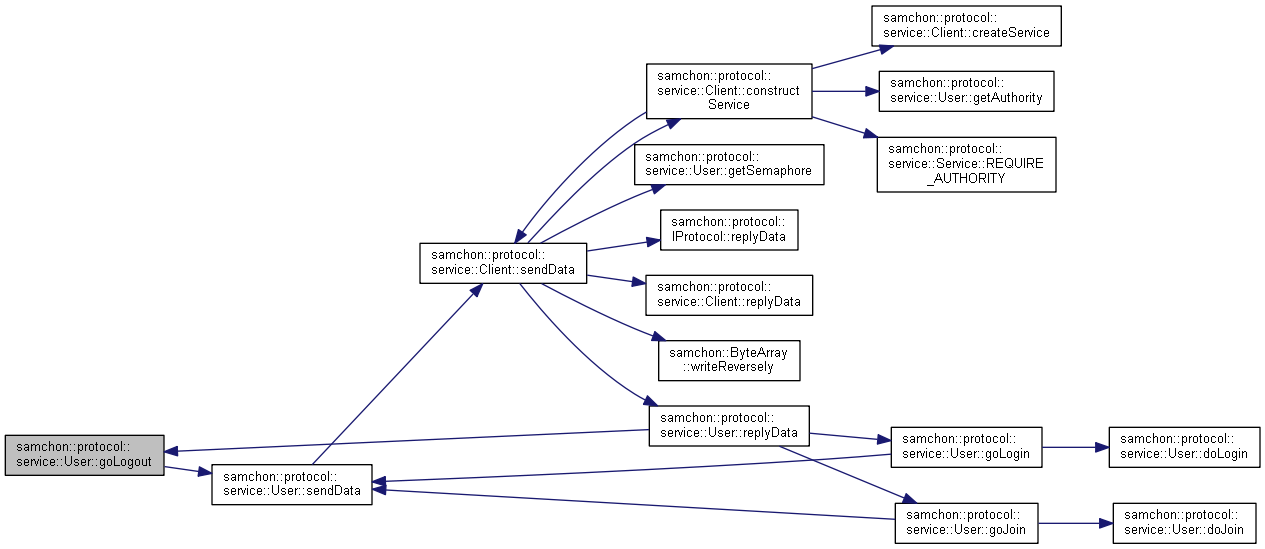

Here is the call graph for this function:

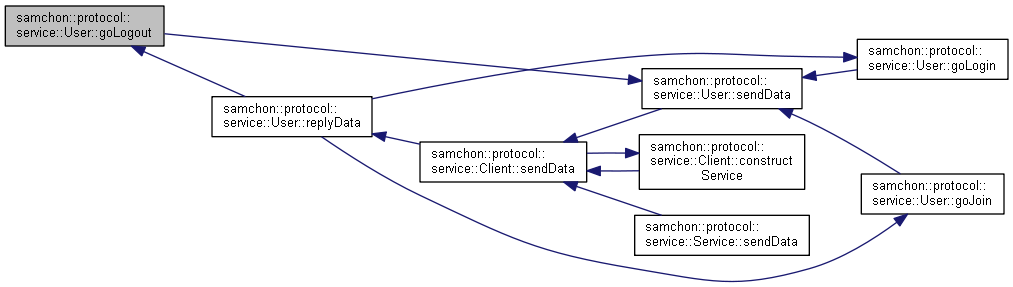

Here is the caller graph for this function:

virtual auto samchon::protocol::service::User::doLogin ( std::shared_ptr< Invoke > ) -> bool

protectedpure virtual

Login and return whether success.

Parameters

invoke Invoke message containing parameters for logging-in

Returns: Whether the log-in is succeded or not

Referenced by goLogin().

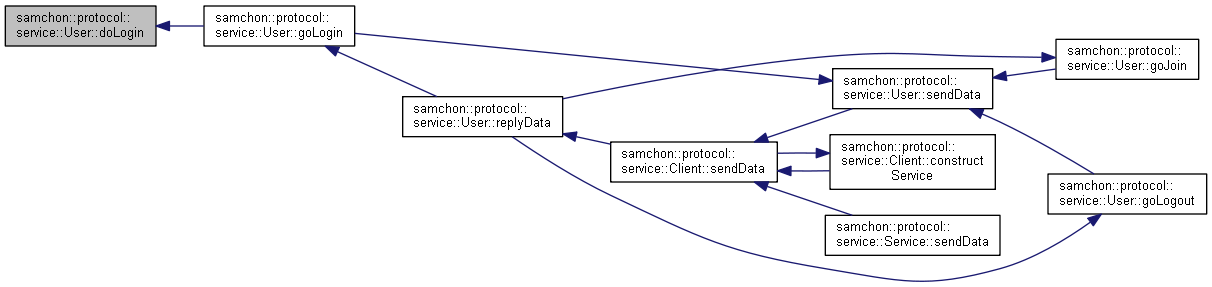

Here is the caller graph for this function:

virtual auto samchon::protocol::service::User::doJoin ( std::shared_ptr< Invoke > ) -> bool

protectedpure virtual

Join and returns whether success.

Parameters

invoke Invoke message containing paramters for joinning

Returns: Whether the join is succeded or not

Referenced by goJoin().

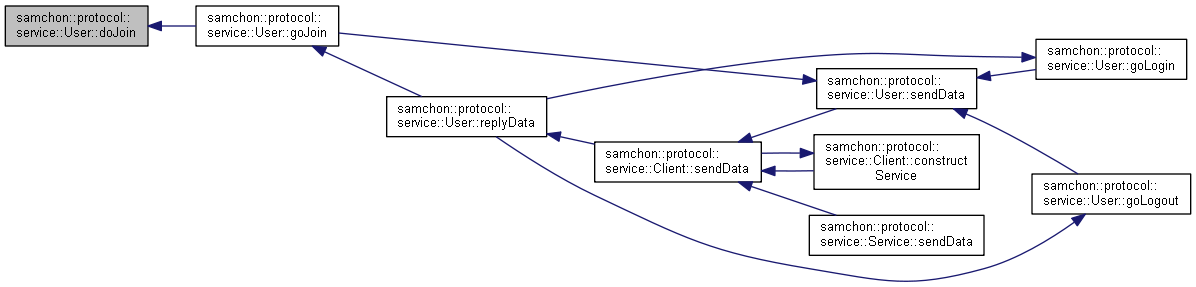

Here is the caller graph for this function:

void User::sendData ( std::shared_ptr< Invoke > )

overridevirtual

Send a message.

Sends Invoke message to a network system or shifts the responsibility to related chain.

Parameters

invoke An Invoke message to send to a network system

Reimplemented from samchon::protocol::IProtocol.

Definition at line 142 of file User.cpp.

References mtx, and samchon::protocol::service::Client::sendData().

Referenced by goJoin(), goLogin(), and goLogout().

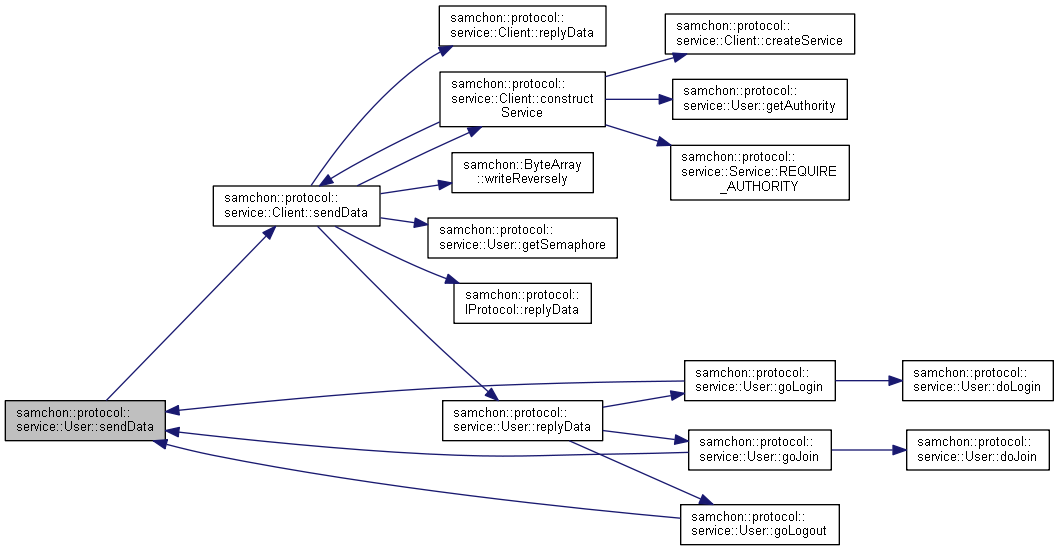

Here is the call graph for this function:

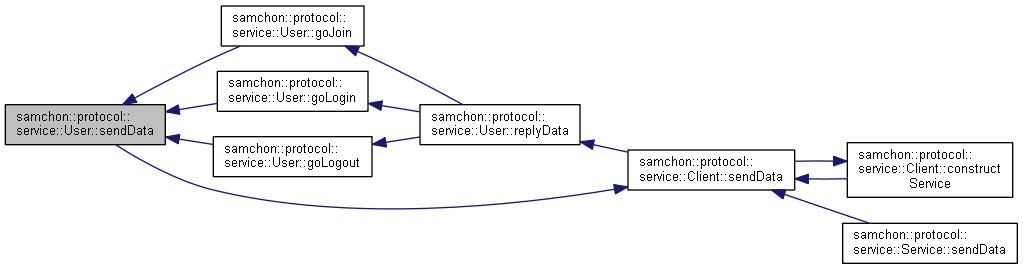

Here is the caller graph for this function:

void User::replyData ( std::shared_ptr< Invoke > )

overridevirtual

Reply a message.

Handles a replied Invoke message or shifts the responsibility to related chain.

Parameters

invoke An Invoke message gotten from a network system

Reimplemented from samchon::protocol::IProtocol.

Definition at line 150 of file User.cpp.

References goJoin(), goLogin(), and goLogout().

Referenced by samchon::protocol::service::Client::sendData().

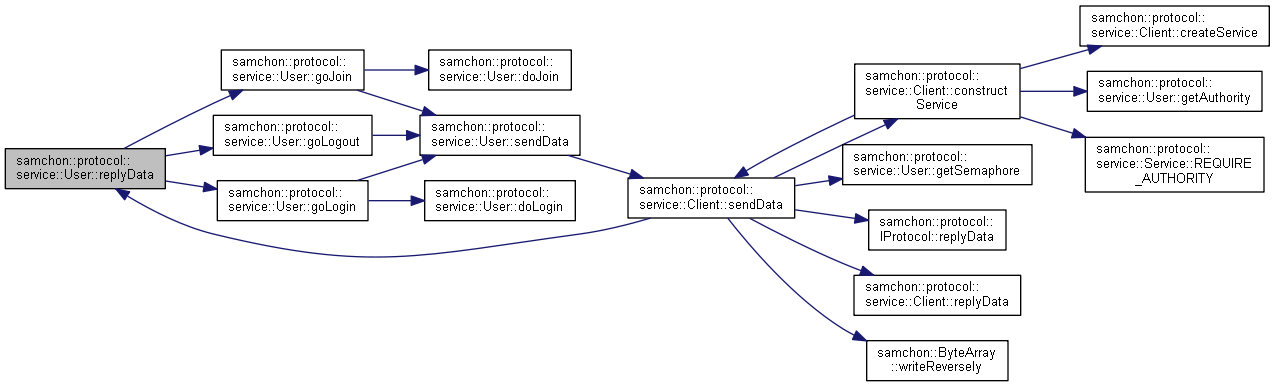

Here is the call graph for this function:

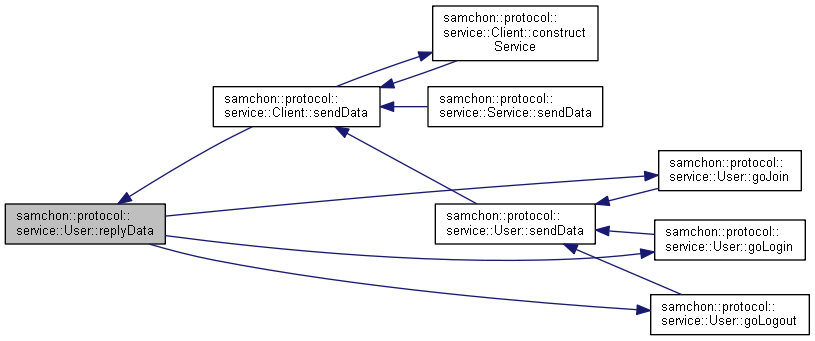

Here is the caller graph for this function:

Member Data Documentation

Server* samchon::protocol::service::User::server

private

Server containing the user.

Definition at line 73 of file User.hpp.

Referenced by eraseClient(), getServer(), and User().

std::string samchon::protocol::service::User::sessionID

private

Session ID of the user.

Organization of the Session ID

{$name}::{$port}::{$sequence}::{$linux_time}
1. $name: Name of the Server; Server::NAME()
2. $port: Port number of the Server; Server::PORT()
3. $sequence: Sequence number of creation of User in Server
4. $linux_time: Linux time of current time.

  If the object Server is re-constructed, $sequence can be duplicated. $linux_time is to avoid the duplication so that ensures exclusiveness on session id

Definition at line 94 of file User.hpp.

Referenced by eraseClient().

library::RWMutex samchon::protocol::service::User::mtx

private

Mutex for container.

Definition at line 104 of file User.hpp.

Referenced by addClient(), eraseClient(), and sendData().

library::Semaphore* samchon::protocol::service::User::semaphore

private

Semaphore to limit number of thread.

Semaphore in User is designed to constraint number of thread.

It's recommended to acquire the semaphore when a task from Client or Service occurs a new thread and you want to avoid exhausted allocation of new threads.

Note

If a task influences to all clients in a user globally, use lock instead of acquire

Definition at line 118 of file User.hpp.

Referenced by getSemaphore(), and User().

std::string samchon::protocol::service::User::id

private

Account id.

Default is "guest"

Definition at line 133 of file User.hpp.

Referenced by getID().

int samchon::protocol::service::User::authority

private

Authority allocated to user.

The authority means authority(right, power) level allocated to the user.

The default value is zero, which means not logged-in user.

Note

Each number of level is not defined clearly. Follwing table is just an example.

Level	Definition
-1	Banned member The -1 level member is banished by manager or policy
0	Guest, Not logged in
1	Unconfired member The member have applied to the join, but the join was not confirmed by manager or policy yet.
2	Confirmed member The member have joined and have already confirmed by manager or policy
3	Manager A manager of the application(cloud service). The manager can Access to the monitoring service. (MonitorService) Access historical log of members whose level are below Manager. Banish or modify level of members whose level are below Manager. </u>
4	Administrator or super Manager Administrator is a Manager of Managers. An administrator can do same thing with Managers, but adminstrator even possible to target Managers as below.

Definition at line 200 of file User.hpp.

Referenced by getAuthority(), goLogin(), goLogout(), and User().

The documentation for this class was generated from the following files:

D:/OneDrive/Project/Samchon/framework/cpp/samchon/protocol/service/User.hpp
D:/OneDrive/Project/Samchon/framework/cpp/samchon/protocol/service/User.cpp
