A slave system solving TSP. More...

#include <TSPSlave.hpp>

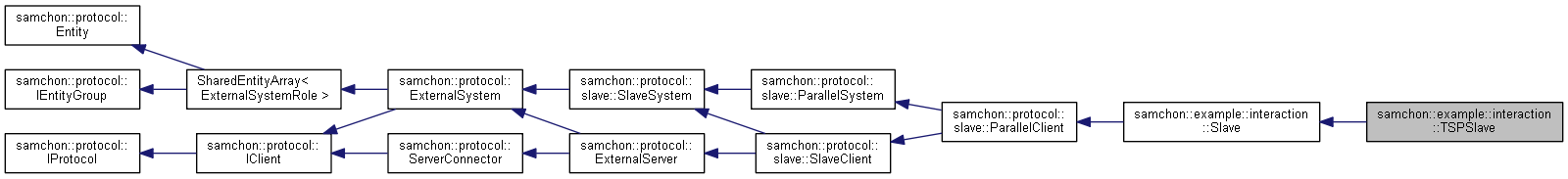

Collaboration diagram for samchon::example::interaction::TSPSlave:

[legend]

Public Member Functions
	TSPSlave (const string &ip)
	Construct from ip address of the master. More...

Public Member Functions inherited from samchon::example::interaction::Slave
	Slave (const string &ip, int port)
	Construct from ip address and port number of master. More...

Public Member Functions inherited from samchon::protocol::slave::ParallelClient
	ParallelClient ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::slave::ParallelSystem
	ParallelSystem ()
	Default Constructor. More...

virtual void	replyPieceData (std::shared_ptr< Invoke >, size_t, size_t)=0
	Handle requested processes which are segmented. More...

Public Member Functions inherited from samchon::protocol::slave::SlaveSystem
	SlaveSystem ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::ExternalSystem
	ExternalSystem ()
	Default Constructor. More...

virtual auto	key () const -> std::string override
	Get a key that can identify the Entity uniquely. More...

virtual void	replyData (std::shared_ptr< Invoke >) override
	Handling replied message from an external system. More...

virtual auto	TAG () const -> std::string override
	A tag name when represented by XML. More...

virtual auto	CHILD_TAG () const -> std::string override
	A tag name of children. More...

Public Member Functions inherited from samchon::protocol::EntityGroup< _Container, _ETy, T >
	EntityGroup ()
	Default Constructor. More...

auto	has (const std::string &key) const -> bool
	Indicates whether a container has an object having the specified identifier. More...

auto	get (const std::string &key) -> value_type &
	Access the element by specified identifier(key). More...

auto	get (const std::string &key) const -> const value_type &
	Access the const element by specified identifier(key). More...

Public Member Functions inherited from samchon::protocol::Entity
	Entity ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::IEntityGroup
	IEntityGroup ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::IClient
	IClient ()
	Default Constructor. More...

virtual void	listen ()
	Listens message from a related system. More...

virtual void	sendData (std::shared_ptr< Invoke >)
	Sends message to a related system. More...

Public Member Functions inherited from samchon::protocol::IProtocol
	IProtocol ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::slave::SlaveClient
	SlaveClient ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::ExternalServer
	ExternalServer ()
	Default Constructor. More...

virtual void	construct (std::shared_ptr< library::XML >) override
	Construct data of the Entity from an XML object. More...

virtual void	start () override
	Start interaction. More...

virtual auto	getIP () const -> std::string override
	Destinatio IP. More...

virtual auto	getPort () const -> int override
	Destination port. More...

virtual auto	getMyIP () const -> std::string override
	(optional) My IP, if you want to bind More...

virtual auto	toXML () const -> std::shared_ptr< library::XML > override
	Get an XML object represents the EntityGroup. More...

Public Member Functions inherited from samchon::protocol::ServerConnector
	ServerConnector ()
	Default Constructor. More...

virtual void	connect ()
	Connect to a server. More...

Static Public Member Functions
static void	main ()
	Main function. More...

Protected Member Functions
virtual void	optimize (shared_ptr< XML > xml, size_t index, size_t size) override
	Optimize something and report the result. More...

Protected Member Functions inherited from samchon::example::interaction::Slave
void	sendOptimization (shared_ptr< XML > xml)
	Send (report) optimization result to its master system. More...

Protected Member Functions inherited from samchon::protocol::slave::ParallelSystem
virtual auto	createChild (std::shared_ptr< library::XML >) -> ExternalSystemRole *override
	Factory method of a child Entity. More...

virtual void	_replyData (std::shared_ptr< Invoke >) override
	Pre-processor for segmented processes and reporting elapsed time. More...

Protected Member Functions inherited from samchon::protocol::IClient
virtual auto	BUFFER_SIZE () const -> size_t
	Buffer size of network I/O. More...

Additional Inherited Members
Protected Attributes inherited from samchon::protocol::ExternalSystem
std::string	name
	A name can identify an external system. More...

std::string	ip
	An ip address of an external system. More...

int	port
	A port number of an external system. More...

Protected Attributes inherited from samchon::protocol::IClient
Socket *	socket
	Socket for network I/O. More...

std::mutex *	sendMtx
	A mutex for sending message. More...

Protected Attributes inherited from samchon::protocol::ExternalServer
std::string	myIP
	A custom ip address of my system to bind. More...

Protected Attributes inherited from samchon::protocol::ServerConnector
boost::asio::io_service *	ioService
	An io_service of Boost.Asio's own. More...

EndPoint *	endPoint
	An endpoint directing a server. More...

EndPoint *	localEndPoint
	(Optional) An local endpoint of the client (my system) More...

Detailed Description

A slave system solving TSP.

[Inherited]

Author: Jeongho Nam http://samchon.org

Definition at line 28 of file TSPSlave.hpp.

Constructor & Destructor Documentation

samchon::example::interaction::TSPSlave::TSPSlave ( const string & ip )

inline

Construct from ip address of the master.

Parameters

ip	IP address of the master.

Definition at line 43 of file TSPSlave.hpp.

Member Function Documentation

virtual void samchon::example::interaction::TSPSlave::optimize	(	shared_ptr< XML >	xml,
		size_t	index,
		size_t	size
	)

inlineoverrideprotectedvirtual

Optimize something and report the result.

Parameters

xml	XML object representing a Travel.
index	Starting index of a segmentation allocated to the Slave.
size	Size of the segmentation.

Reimplemented from samchon::example::interaction::Slave.

Definition at line 53 of file TSPSlave.hpp.

References samchon::example::tsp::Scheduler::optimize(), and samchon::example::tsp::Scheduler::toXML().

Here is the call graph for this function:

static void samchon::example::interaction::TSPSlave::main ( )

inlinestatic

Main function.

Definition at line 72 of file TSPSlave.hpp.

References samchon::protocol::ExternalServer::start().

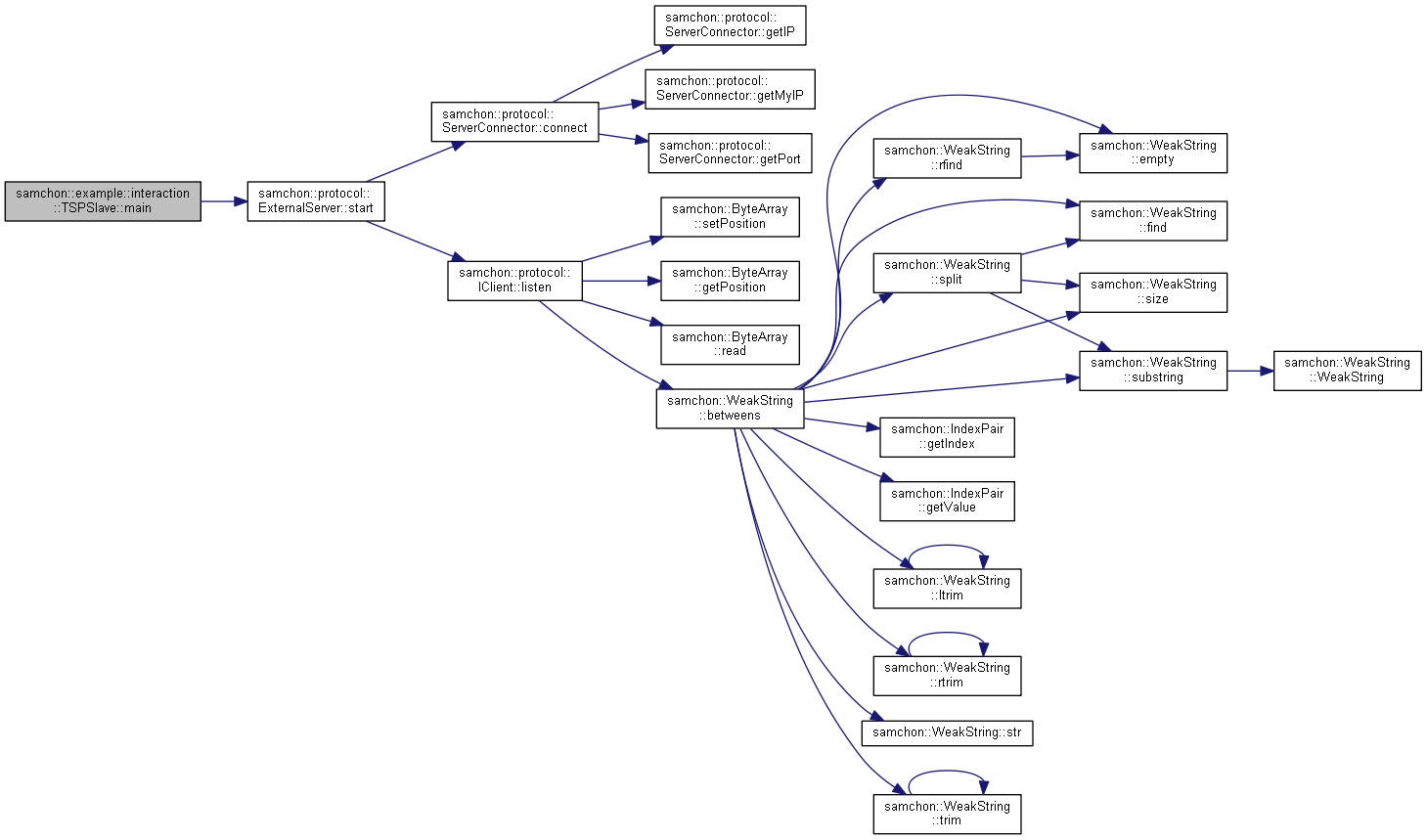

Here is the call graph for this function:

The documentation for this class was generated from the following file:

D:/OneDrive/Project/Samchon/framework/cpp/samchon/example/interaction/TSPSlave.hpp
