A network driver for a parallel client. More...

#include <ParallelClient.hpp>

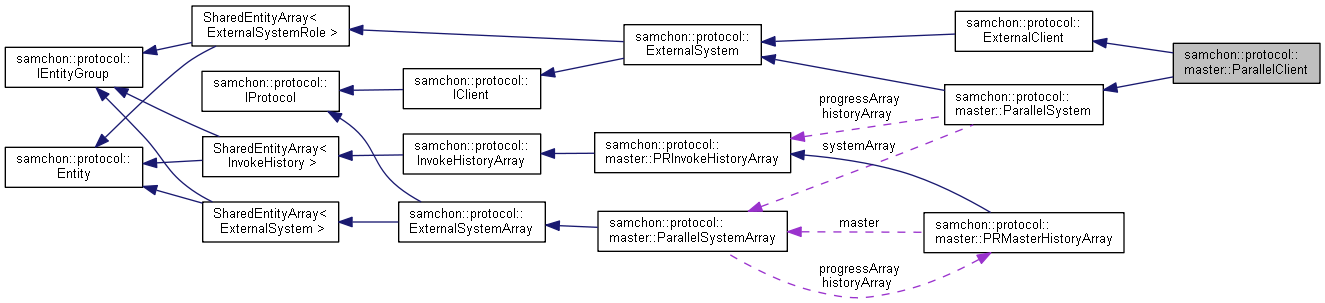

Collaboration diagram for samchon::protocol::master::ParallelClient:

[legend]

Public Member Functions
	ParallelClient ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::master::ParallelSystem
	ParallelSystem ()
	Default Constructor. More...

virtual void	construct (std::shared_ptr< library::XML >) override
	Construct data of the Entity from an XML object. More...

virtual auto	toXML () const -> std::shared_ptr< library::XML > override
	Get an XML object represents the EntityGroup. More...

Public Member Functions inherited from samchon::protocol::ExternalSystem
	ExternalSystem ()
	Default Constructor. More...

virtual auto	key () const -> std::string override
	Get a key that can identify the Entity uniquely. More...

virtual void	replyData (std::shared_ptr< Invoke >) override
	Handling replied message from an external system. More...

virtual auto	TAG () const -> std::string override
	A tag name when represented by XML. More...

virtual auto	CHILD_TAG () const -> std::string override
	A tag name of children. More...

Public Member Functions inherited from samchon::protocol::EntityGroup< _Container, _ETy, T >
	EntityGroup ()
	Default Constructor. More...

auto	has (const std::string &key) const -> bool
	Indicates whether a container has an object having the specified identifier. More...

auto	get (const std::string &key) -> value_type &
	Access the element by specified identifier(key). More...

auto	get (const std::string &key) const -> const value_type &
	Access the const element by specified identifier(key). More...

Public Member Functions inherited from samchon::protocol::Entity
	Entity ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::IEntityGroup
	IEntityGroup ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::IClient
	IClient ()
	Default Constructor. More...

virtual void	listen ()
	Listens message from a related system. More...

virtual void	sendData (std::shared_ptr< Invoke >)
	Sends message to a related system. More...

Public Member Functions inherited from samchon::protocol::IProtocol
	IProtocol ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::ExternalClient
	ExternalClient ()
	Default Constructor. More...

virtual void	start () override
	Start interaction. More...

Additional Inherited Members
Protected Member Functions inherited from samchon::protocol::master::ParallelSystem
virtual auto	createChild (std::shared_ptr< library::XML >) -> ExternalSystemRole *override
	Factory method of a child Entity. More...

virtual void	_replyData (std::shared_ptr< Invoke >) override
	A method for pre-processing replied Invoke message. More...

Protected Member Functions inherited from samchon::protocol::IClient
virtual auto	BUFFER_SIZE () const -> size_t
	Buffer size of network I/O. More...

Protected Attributes inherited from samchon::protocol::master::ParallelSystem
ParallelSystemArray *	systemArray
	A master that the system is belonged to. More...

PRInvokeHistoryArray *	historyArray
	A list of history log for reported Invoke messages. More...

PRInvokeHistoryArray *	progressArray
	A list of invoke messages on progress. More...

double	performance
	A performance index. More...

Protected Attributes inherited from samchon::protocol::ExternalSystem
std::string	name
	A name can identify an external system. More...

std::string	ip
	An ip address of an external system. More...

int	port
	A port number of an external system. More...

Protected Attributes inherited from samchon::protocol::IClient
Socket *	socket
	Socket for network I/O. More...

std::mutex *	sendMtx
	A mutex for sending message. More...

Detailed Description

A network driver for a parallel client.

ParallelClient is an ParallelSystem specialized in client driver.

[Inherited]

ParallelSystem class is an ExternalSystem having performance index and history logs of handled Invoke messages with those elapsed times. Those performance index and history logs are used to determine how much segmentation to be allocated.

Each segmentation in requested process (Invoke message) is equivalent. Thus, role of ParallelSystem objects in a ParallelSystemArray are almost same and does not need to specify ExternalSystemRole on ParallelSystem.

Not a matter to specifying ExternalSystemRole objects to each ParallelSystem. In that case, Invoke messages having segmentation size will be processed by ParallelSystem's own logic and Invoke messages without segmentation size will be handled by ordinary logic of ExternalSystem's own.

[Inherited]

Definition at line 22 of file ParallelClient.hpp.

Constructor & Destructor Documentation

ParallelClient::ParallelClient ( )

Default Constructor.

Definition at line 8 of file ParallelClient.cpp.

The documentation for this class was generated from the following files:

D:/OneDrive/Project/Samchon/framework/cpp/samchon/protocol/master/ParallelClient.hpp
D:/OneDrive/Project/Samchon/framework/cpp/samchon/protocol/master/ParallelClient.cpp
