samchon::protocol::service::Service Class Reference

A service. More...

#include <Service.hpp>

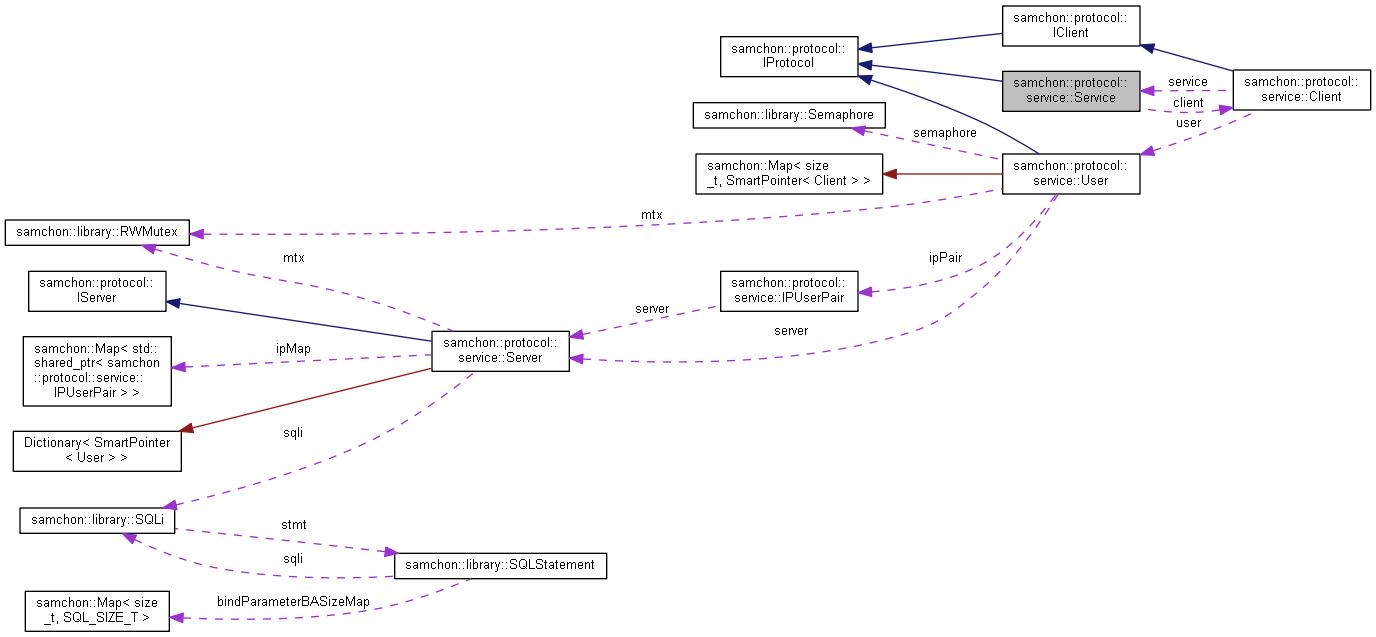

Collaboration diagram for samchon::protocol::service::Service:

Public Member Functions
	Service (Client *)
	Construct from Client. More...
auto	getClient () const -> Client *
	Get Client. More...
virtual void	sendData (std::shared_ptr< Invoke >)
	Shift the responsibility of sending an Invoke message to Client. More...
Public Member Functions inherited from samchon::protocol::IProtocol
	IProtocol ()
	Default Constructor. More...
virtual void	replyData (std::shared_ptr< Invoke >)
	Reply a message. More...

Protected Member Functions
virtual auto	REQUIRE_AUTHORITY () const -> int=NULL
	Required authority to access the service. More...

Private Attributes
Client *	client
	Client object Service is belonged to. More...
std::string	name
	A name represents a Service. More...

Detailed Description

A service.

A service represents an unique functions of a web page

Most of functinos are realized in here. The Service is correspondent with a 'a service of a web page'. For a cloud Server, there can be enormous Service classes. Create Services for each functions and Define the functions detail in here.

See also

samchon::protocol

samchon::protocol::service

Author

Jeongho Nam http://samchon.org

Definition at line 44 of file Service.hpp.

Constructor & Destructor Documentation

Service::Service

(

Client *

client

)

Construct from Client.

Parameters

client

Client object Service is belonged to

Definition at line 18 of file Service.cpp.

References client, and getClient().

Here is the call graph for this function:

Member Function Documentation

virtual auto samchon::protocol::service::Service::REQUIRE_AUTHORITY ( ) const -> int=NULL

protectedvirtual

Required authority to access the service.

Referenced by samchon::protocol::service::Client::constructService().

Here is the caller graph for this function:

auto Service::getClient

(

)

const -> Client*

Get Client.

Definition at line 32 of file Service.cpp.

References client.

Referenced by Service().

Here is the caller graph for this function:

void Service::sendData ( std::shared_ptr< Invoke >  )

virtual

Shift the responsibility of sending an Invoke message to Client.

Parameters

in	An Invoke message to be sent to the (physical) client

Reimplemented from samchon::protocol::IProtocol.

Definition at line 40 of file Service.cpp.

References client, and samchon::protocol::service::Client::sendData().

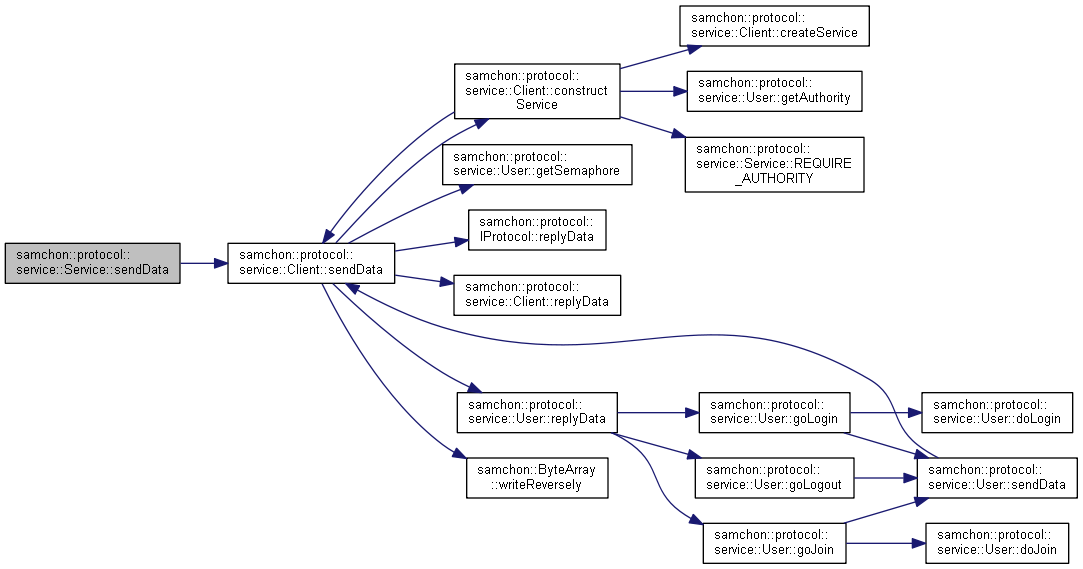

Here is the call graph for this function:

Member Data Documentation

Client* samchon::protocol::service::Service::client

private

Client object Service is belonged to.

Definition at line 62 of file Service.hpp.

Referenced by getClient(), sendData(), and Service().

std::string samchon::protocol::service::Service::name

private

A name represents a Service.

Definition at line 67 of file Service.hpp.

Referenced by samchon::protocol::service::Client::constructService().

---

The documentation for this class was generated from the following files:

• D:/OneDrive/Project/Samchon/framework/cpp/samchon/protocol/service/Service.hpp
• D:/OneDrive/Project/Samchon/framework/cpp/samchon/protocol/service/Service.cpp
