An interface for a web-client. More...

#include <IWebClientBase.hpp>

Collaboration diagram for samchon::protocol::IWebClientBase:

Public Member Functions
	IWebClientBase ()
	Default Constructor. More...

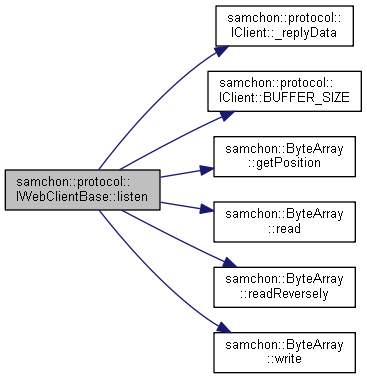

virtual void	listen () override
	Listens message from a related system. More...

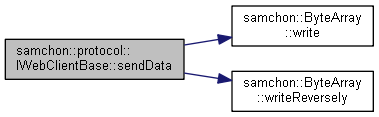

virtual void	sendData (std::shared_ptr< Invoke >) override
	Sends message to a related system. More...

Public Member Functions inherited from samchon::protocol::IClient
	IClient ()
	Default Constructor. More...

Public Member Functions inherited from samchon::protocol::IProtocol
	IProtocol ()
	Default Constructor. More...

virtual void	replyData (std::shared_ptr< Invoke >)
	Reply a message. More...

Additional Inherited Members
Protected Member Functions inherited from samchon::protocol::IClient
virtual auto	BUFFER_SIZE () const -> size_t
	Buffer size of network I/O. More...

virtual void	_replyData (std::shared_ptr< Invoke >)
	A method for pre-processing replied Invoke message. More...

Protected Attributes inherited from samchon::protocol::IClient
Socket *	socket
	Socket for network I/O. More...

std::mutex *	sendMtx
	A mutex for sending message. More...

Detailed Description

An interface for a web-client.

IWebClient is a IClient following web-socket protocol.

[Inherited]

IClient is an interface not only for a physical client, but also a driver for a client in a physical server.

IServer:addClient()
- service::Server -> service::User -> service::Client
- ExternalClientArray (A physical server) -> ExternalClient (A driver of a client)

IClient is one of the basic 3 + 1 components that can make any type of network system in Samchon Framework with IProtocol and IServer. Looking around classes in Samchon Framework, you can see all classes related with client are implemented from the IClient.

IClient takes a role of real network I/O. IClient sends data to otherside network system from IProtocol::sendData(). IClient also gets data from otherside network system, generates standard Invoke message from parsing the replied data and shift the Invoke message to IProtocol::replyData().
